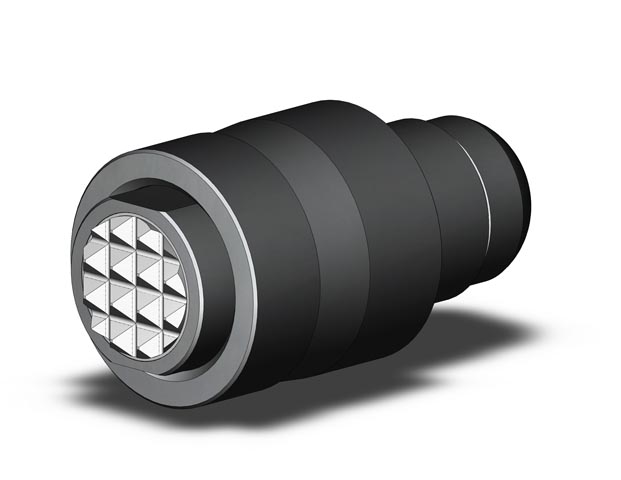

Accugrip Adjustable Gripper - 1/2-20 X 7/8 in - Fine

Part Number: ACG-0240-S
Weight: 0 lbs 3 ozs
Length - Thread: 7/8
Diameter - Contact Surface: 1/2
Diameter - Grip Pad: .624
Length - Overall: 1-3/8
Thread - Internal - Tap: 1/2-20
Height - Head - Max: 5/16
Height - Head - Max: 3/16
Length - Housing: 1-9/16
Diameter - Assembly Hole: 21/32
Tooth Pattern: Fine
Diameter - Overall: .875
Length - Housing - Body: 7/8
Length - to Center of Set Screw: 7/16
Adj Gripper: ACG-0240-1S
Housing Part Number: ACG-0240-2
Lockscrew Part Number: ACG-0240-3
Complete Assembly: 1/2" THD. SERR. TIP

Part:ACG-0240-S

ACG-0240-S

Download

Download CAD models here
