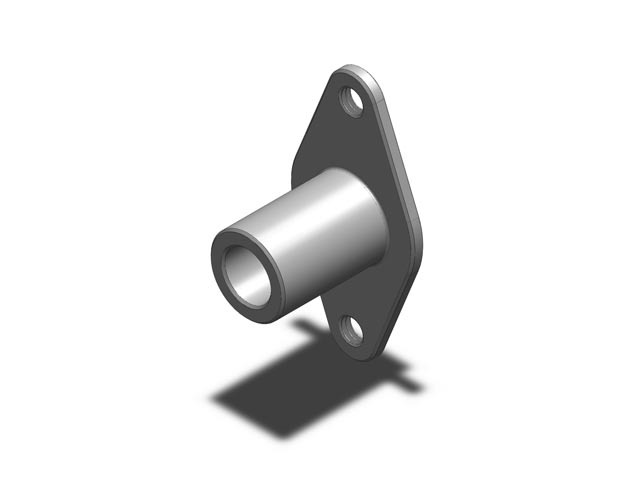

Ball Lock Pin Receptacle - Diamond - 3/16 in

Part Number: DIFR-187
Use With Pin Dia: 3/16
Style - Flange: Diamond
Height - Overall: 0.650
Diameter - Body: 0.375
Height - Base: 0.060
Length - between Mounting Hole Centers: 1.000
Width - Overall: 0.625
Thread - Internal - Tap: 6-32
Length - Overall: 1.250
Grip Length Reduction: 0.375

Part:DIFR-187

DIFR-187

Download

Download CAD models here
