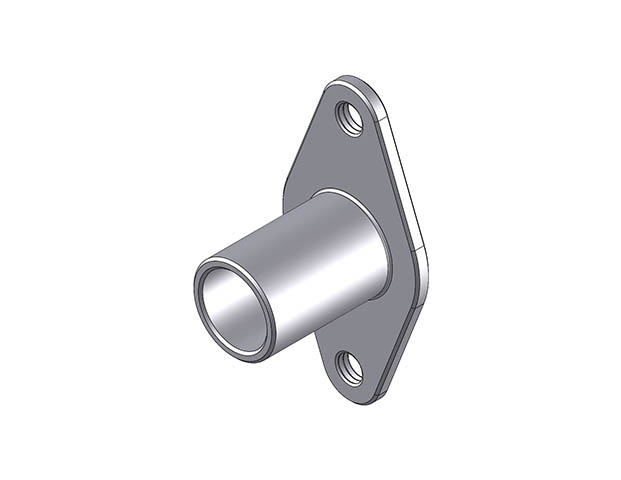

Ball Lock Pin Receptacle - Diamond - 6 mm

Part Number: MDIFR-06
Use With Pin Dia: 6mm
Flange Style: Diamond
Height - Overall: 16.51
Diameter - Body: 9.53
Height - Base: 1.52
Length - between Mounting Hole Centers: 25
Width - Overall: 15.88
Thread - Internal - Tap: M4
Length - Overall: 31.75
Grip Length Reduction: 10

Part:MDIFR-06

MDIFR-06
