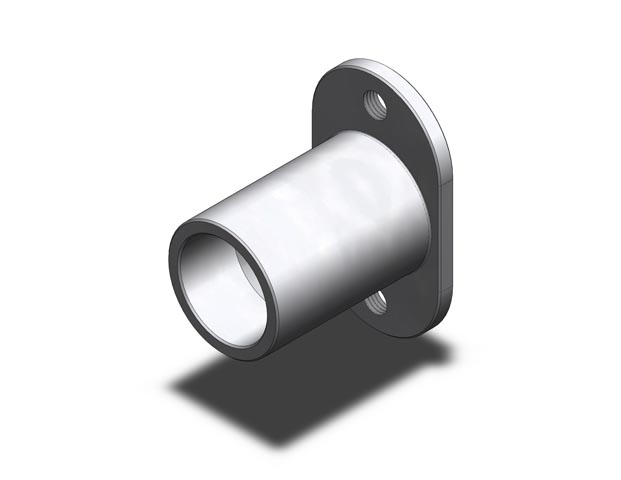

Ball Lock Pin Receptacle - Oblong - 12 mm

Part Number: MOBFR-12
Weight: 0 lbs 4 ozs
Use With Pin Dia: 12mm
Flange Style: Oblong
Length - Overall: 30.35
Diameter - Body: 19.05
Height - Flange: 2.54
Length - between Mounting Hole Centers: 29
Width - Overall: 22.23
Thread - Internal - Tap: M5
Length - Overall: 38.10
Grip Length Reduction: 20

Part:MOBFR-12

MOBFR-12
