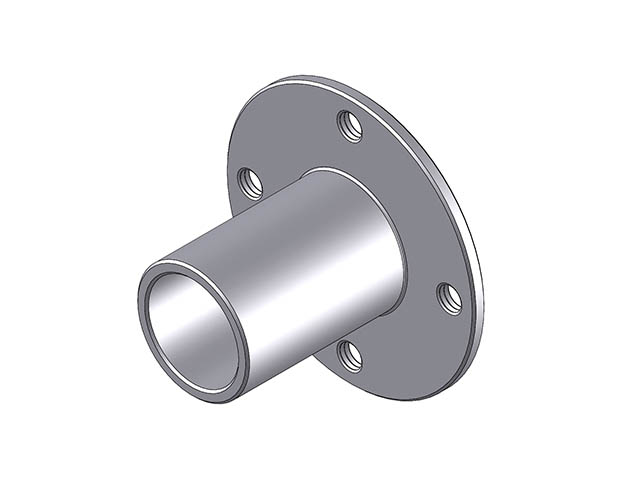

Ball Lock Pin Receptacle - Round - 3/8 in

Part Number: ROFR-375
Weight: 0 lbs 1 ozs
Use With Pin Dia: 3/8
Flange Style: Round
Length - Overall: 0.913
Diameter - Body: 0.562
Height - Flange: 0.060
Length - between Mounting Hole Centers: 1.000
Width - Overall: -
Thread - Internal - Tap: 6-32
Diameter - Overall: 1.250
Grip Length Reduction: 0.562

Part:ROFR-375

ROFR-375

Download

Download CAD models here
