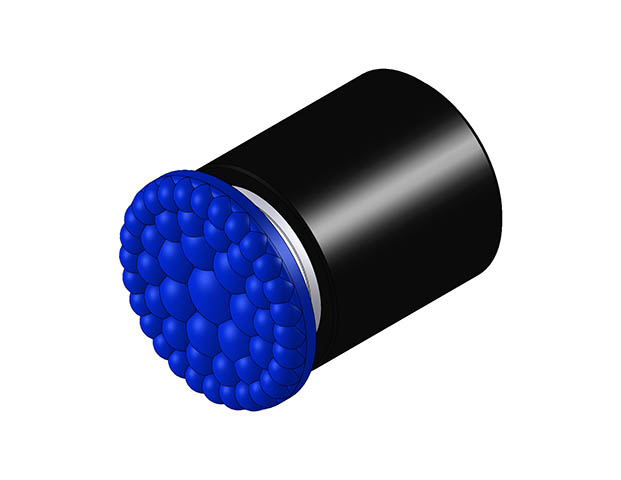

Base Design Swivot - 19 mm Dia X 20 mm - Sof-Top - 60 Dur

Part Number: MBBU-1924-FC-60UR

Weight: 0 lbs 2 ozs

Diameter - Overall: 19

Length - Body: 20

Diameter - Contact Surface: 21

Degree - Swivel: 24

Diameter - Ball: 15

Length - Thread: 8.5

Ball Only Part No.: MBUB-150-FC-60UR

Durometer: 60

Thread - Internal - Tap: M8x1.25

Rating - Load: 340

Thickness - Urethane: 2

Part:MBBU-1924-FC-60UR

Download CAD models here
