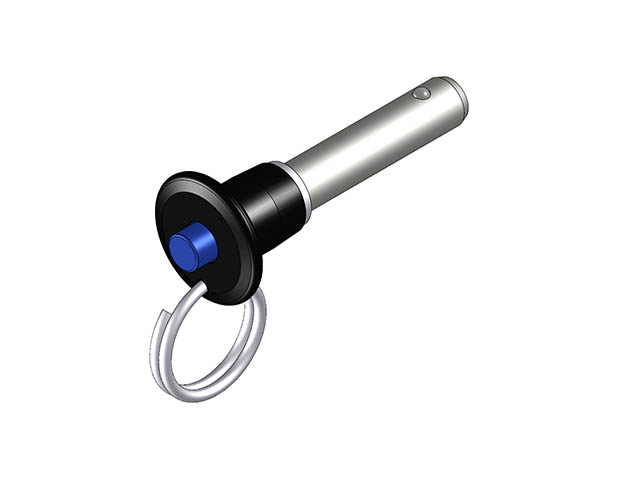

Button Handle Pin - 17-4 SS Shank - 3/8 in Dia X 1.25 in

Part Number: BACH-37-125
Weight: 0 lbs 1 ozs
Diameter - Nominal: 3/8
Diameter - Shaft - Max: 0.3735
Diameter - Shaft - Min: 0.3720
Diameter - at Balls: 0.440
Length - to top of Balls: 0.365
Length - Head: 1.00
Width - Shoulder: 0.56
Diameter - Button: 0.29
Length - Head Below Rim: 0.70
Width - Overall: 1.00

Part:BACH-37-125

BACH-37-125
