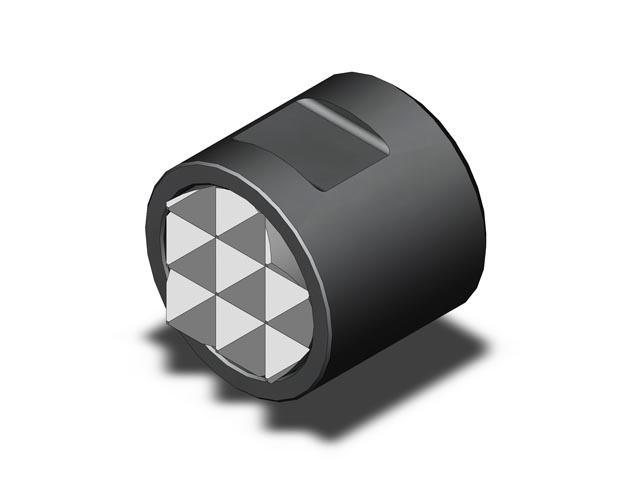

Carbide Tipped Gripper - Round - 12 mm Dia X 12 mm - Fine

Part Number: MCT-122
Diameter - Overall: 12
Height - Overall: 12
Height - to Center of Flat: 6.0
Height - Flat: 4.75
Diameter - Contact Surface: 3/8
Thread - Internal - Tap: M5x0.8
Tooth Pattern: Fine

Part:MCT-122

MCT-122

Download

Download CAD models here
