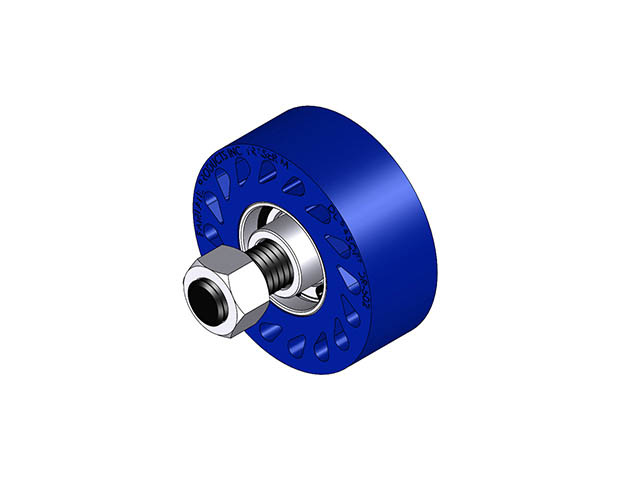

DuraSoft® Roller - Precision Sealed Stud Mount - 60 Dur Urethane - 2.50 in Dia X 0.92 in Wide

Part Number: DR-9502-60UR-CPC
Weight: 0 lbs 6 ozs
Diameter - Overall: 2.50
Material: Urethane
Width - Roller: .92
Diameter - Inside - Bearing Mount: 1/2-13 x 1.75 LHCS
Length - Stud to Roller: 1.10
Height - Standoff - Spacer: .12
No. of Bearings: 1
Bearing Type: G
Durometer: 60

Part:DR-9502-60UR-CPC

DR-9502-60UR-CPC

Download

Download CAD models here
