Base Design Swivots® Gripper Assembly - Flat Delrin Cone - Inch (BBU-DC)

Base Design Swivots® Gripper Assembly - Flat Delrin Cone - Inch (BBU-DC)

Description

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable ball swivels to allow for self-alignment on uneven surfaces and is made from non-marring white delrin. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately.

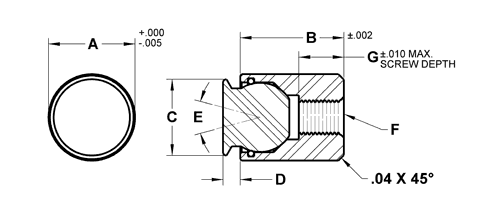

BBU-100-DC

Base Design Swivot - 3/8 Dia X 5/16 - Delrin Cone
