Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Inch (BUH-D)

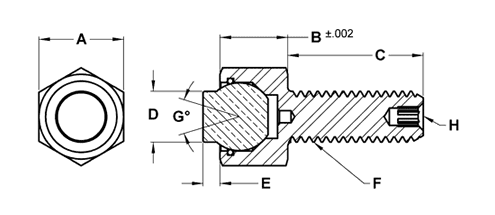

Drawing
Description
Media

Description

The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

BUH-0124-D

Hex Design Swivot - 10-24 X 1/2 in - Delrin

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9
BUH-0124-D	BUH-0124-D	BUH-0124-D	Hex Design Swivot - 10-24 X 1/2 in - Delrin	1	101519	CAD	3/8	1/4	1/2	5/32	1/16	#10-24	28	—	3/16	BUB-187-D
BUH-0124X1-D	BUH-0124-D	BUH-0124X1-D	Hex Design Swivot - 10-24 X 1 in - Delrin	1	101583	CAD	3/8	1/4	1	5/32	1/16	#10-24	28	—	3/16	BUB-187-D
BUH-0132-D	BUH-0124-D	BUH-0132-D	Hex Design Swivot - 10-32 X 1/2 in - Delrin	1	101642	CAD	3/8	1/4	1/2	5/32	1/16	#10-32	28	—	3/16	BUB-187-D
BUH-0132X1-D	BUH-0124-D	BUH-0132X1-D	Hex Design Swivot - 10-32 X 1 in - Delrin	1	101691	CAD	3/8	1/4	1	5/32	1/16	#10-32	28	—	3/16	BUB-187-D
BUH-0250-D	BUH-0124-D	BUH-0250-D	Hex Design Swivot - 1/4-20 X 1/2 in - Delrin	1	102220	CAD	7/16	5/16	1/2	1/4	1/16	1/4-20	28	—	9/32	BUB-200-D
BUH-0250-D-T	BUH-0124-D	BUH-0250-D-T	Hex Design Swivot - 1/4-20 X 1/2 in - Delrin - Tall	1	102222	CAD	7/16	5/16	1/2	1/4	1/8	1/4-20	28	—	9/32	BUB-200-D-T
BUH-0251-D	BUH-0124-D	BUH-0251-D	Hex Design Swivot - 1/4-20 X 1 in - Delrin	1	102260	CAD	7/16	5/16	1	1/4	1/16	1/4-20	28	—	9/32	BUB-200-D
BUH-0251-D-T	BUH-0124-D	BUH-0251-D-T	Hex Design Swivot - 1/4-20 X 1 in - Delrin - Tall	1	102262	CAD	7/16	5/16	1	1/4	1/8	1/4-20	28	—	9/32	BUB-200-D-T
BUH-0251X1.5-D	BUH-0124-D	BUH-0251X1.5-D	Hex Design Swivot - 1/4-20 X 1-1/2 in - Delrin	1	102331	CAD	7/16	5/16	1-1/2	1/4	1/16	1/4-20	28	—	9/32	BUB-200-D
BUH-0251X1.5-D-T	BUH-0124-D	BUH-0251X1.5-D-T	Hex Design Swivot - 1/4-20 X 1-1/2 in - Delrin - Tall	1	102348	CAD	7/16	5/16	1-1/2	1/4	1/8	1/4-20	28	—	9/32	BUB-200-D-T
BUH-0280-D	BUH-0124-D	BUH-0280-D	Hex Design Swivot - 1/4-28 X 1/2 in - Delrin	1	102411	CAD	7/16	5/16	1/2	1/4	1/16	1/4-28	28	—	9/32	BUB-200-D
BUH-0280-D-T	BUH-0124-D	BUH-0280-D-T	Hex Design Swivot - 1/4-28 X 1/2 in - Delrin - Tall	1	102413	CAD	7/16	5/16	1/2	1/4	1/8	1/4-28	28	—	9/32	BUB-200-D-T
BUH-0281-D	BUH-0124-D	BUH-0281-D	Hex Design Swivot - 1/4-28 X 1 in - Delrin	1	102471	CAD	7/16	5/16	1	1/4	1/16	1/4-28	28	—	9/32	BUB-200-D
BUH-0281-D-T	BUH-0124-D	BUH-0281-D-T	Hex Design Swivot - 1/4-28 X 1 in - Delrin - Tall	1	102476	CAD	7/16	5/16	1	1/4	1/8	1/4-28	28	—	9/32	BUB-200-D-T
BUH-0281X1.5-D	BUH-0124-D	BUH-0281X1.5-D	Hex Design Swivot - 1/4-28 X 1-1/2 in - Delrin	1	102530	CAD	7/16	5/16	1-1/2	1/4	1/16	1/4-28	28	—	9/32	BUB-200-D
BUH-0281X1.5-D-T	BUH-0124-D	BUH-0281X1.5-D-T	Hex Design Swivot - 1/4-28 X 1-1/2 in - Delrin - Tall	1	102532	CAD	7/16	5/16	1-1/2	1/4	1/8	1/4-28	28	—	9/32	BUB-200-D-T
BUH-0310-D	BUH-0124-D	BUH-0310-D	Hex Design Swivot - 5/16-18 X 1/2 in - Delrin	1	102665	CAD	1/2	3/8	1/2	5/16	1/16	5/16-18	28	—	3/8	BUB-300-D
BUH-0310-D-T	BUH-0124-D	BUH-0310-D-T	Hex Design Swivot - 5/16-18 X 1/2 in - Delrin - Tall	1	102669	CAD	1/2	3/8	1/2	5/16	1/8	5/16-18	28	—	3/8	BUB-300-D-T
BUH-0312-D	BUH-0124-D	BUH-0312-D	Hex Design Swivot - 5/16-18 X 1 in - Delrin	1	102800	CAD	1/2	3/8	1	5/16	1/16	5/16-18	28	—	3/8	BUB-300-D
BUH-0312-D-T	BUH-0124-D	BUH-0312-D-T	Hex Design Swivot - 5/16-18 X 1 in - Delrin - Tall	1	102803	CAD	1/2	3/8	1	5/16	1/8	5/16-18	28	—	3/8	BUB-300-D-T
BUH-0312X1.5-D	BUH-0124-D	BUH-0312X1.5-D	Hex Design Swivot - 5/16-18 X 1-1/2 in - Delrin	1	102894	CAD	1/2	3/8	1-1/2	5/16	1/16	5/16-18	28	—	3/8	BUB-300-D
BUH-0312X1.5-D-T	BUH-0124-D	BUH-0312X1.5-D-T	Hex Design Swivot - 5/16-18 X 1-1/2 in - Delrin - Tall	1	102905	CAD	1/2	3/8	1-1/2	5/16	1/8	5/16-18	28	—	3/8	BUB-300-D-T
BUH-0320-D	BUH-0124-D	BUH-0320-D	Hex Design Swivot - 5/16-24 X 1/2 in - Delrin	1	101650	CAD	1/2	3/8	1/2	5/16	1/16	5/16-24	28	—	3/8	BUB-300-D
BUH-0320-D-T	BUH-0124-D	BUH-0320-D-T	Hex Design Swivot - 5/16-24 X 1/2 in - Delrin - Tall	1	101661	CAD	1/2	3/8	1/2	5/16	1/8	5/16-24	28	—	3/8	BUB-300-D-T
BUH-0321-D	BUH-0124-D	BUH-0321-D	Hex Design Swivot - 5/16-24 X 1 in - Delrin	1	101770	CAD	1/2	3/8	1	5/16	1/16	5/16-24	28	—	3/8	BUB-300-D
BUH-0321-D-T	BUH-0124-D	BUH-0321-D-T	Hex Design Swivot - 5/16-24 X 1 in - Delrin - Tall	1	101780	CAD	1/2	3/8	1	5/16	1/8	5/16-24	28	—	3/8	BUB-300-D-T
BUH-0321X1.5-D	BUH-0124-D	BUH-0321X1.5-D	Hex Design Swivot - 5/16-24 X 1-1/2 in - Delrin	1	101872	CAD	1/2	3/8	1-1/2	5/16	1/16	5/16-24	28	—	3/8	BUB-300-D
BUH-0321X1.5-D-T	BUH-0124-D	BUH-0321X1.5-D-T	Hex Design Swivot - 5/16-24 X 1-1/2 in - Delrin - Tall	1	101893	CAD	1/2	3/8	1-1/2	5/16	1/8	5/16-24	28	—	3/8	BUB-300-D-T
BUH-0370-D	BUH-0124-D	BUH-0370-D	Hex Design Swivot - 3/8-16 X 1/2 in - Delrin	1	101967	CAD	5/8	1/2	1/2	3/8	1/8	3/8-16	40	1/8	1/2	BUB-500-D
BUH-0370-D-T	BUH-0124-D	BUH-0370-D-T	Hex Design Swivot - 3/8-16 X 1/2 in - Delrin - Tall	1	101976	CAD	5/8	1/2	1/2	3/8	1/4	3/8-16	40	1/8	1/2	BUB-500-D-T
BUH-0375-D	BUH-0124-D	BUH-0375-D	Hex Design Swivot - 3/8-16 X 1 in - Delrin	1	102082	CAD	5/8	1/2	1	3/8	1/8	3/8-16	40	1/8	1/2	BUB-500-D
BUH-0375-D-T	BUH-0124-D	BUH-0375-D-T	Hex Design Swivot - 3/8-16 X 1 in - Delrin - Tall	1	102085	CAD	5/8	1/2	1	3/8	1/4	3/8-16	40	1/8	1/2	BUB-500-D-T
BUH-0375X1.5-D	BUH-0124-D	BUH-0375X1.5-D	Hex Design Swivot - 3/8-16 X 1-1/2 in - Delrin	1	102182	CAD	5/8	1/2	1-1/2	3/8	1/8	3/8-16	40	1/8	1/2	BUB-500-D
BUH-0375X1.5-D-T	BUH-0124-D	BUH-0375X1.5-D-T	Hex Design Swivot - 3/8-16 X 1-1/2 in - Delrin - Tall	1	102184	CAD	5/8	1/2	1-1/2	3/8	1/4	3/8-16	40	1/8	1/2	BUB-500-D-T
BUH-0230-D	BUH-0124-D	BUH-0230-D	Hex Design Swivot - 3/8-24 X 1/2 in - Delrin	1	101777	CAD	5/8	1/2	1/2	3/8	1/8	3/8-24	40	1/8	1/2	BUB-500-D
BUH-0230-D-T	BUH-0124-D	BUH-0230-D-T	Hex Design Swivot - 3/8-24 X 1/2 in - Delrin - Tall	1	101779	CAD	5/8	1/2	1/2	3/8	1/4	3/8-24	40	1/8	1/2	BUB-500-D-T
BUH-0231-D	BUH-0124-D	BUH-0231-D	Hex Design Swivot - 3/8-24 X 1 in - Delrin	1	101897	CAD	5/8	1/2	1	3/8	1/8	3/8-24	40	1/8	1/2	BUB-500-D
BUH-0231-D-T	BUH-0124-D	BUH-0231-D-T	Hex Design Swivot - 3/8-24 X 1 in - Delrin - Tall	1	101900	CAD	5/8	1/2	1	3/8	1/4	3/8-24	40	1/8	1/2	BUB-500-D-T
BUH-0231X1.5-D	BUH-0124-D	BUH-0231X1.5-D	Hex Design Swivot - 3/8-24 X 1-1/2 in - Delrin	1	101998	CAD	5/8	1/2	1-1/2	3/8	1/8	3/8-24	40	1/8	1/2	BUB-500-D
BUH-0231X1.5-D-T	BUH-0124-D	BUH-0231X1.5-D-T	Hex Design Swivot - 3/8-24 X 1-1/2 in - Delrin - Tall	1	101999	CAD	5/8	1/2	1-1/2	3/8	1/4	3/8-24	40	1/8	1/2	BUB-500-D-T
BUH-0510-D	BUH-0124-D	BUH-0510-D	Hex Design Swivot - 1/2-13 X 1 in - Delrin	1	102483	CAD	13/16	5/8	1	1/2	1/8	1/2-13	40	3/16	5/8	BUB-600-D
BUH-0510-D-T	BUH-0124-D	BUH-0510-D-T	Hex Design Swivot - 1/2-13 X 1 in - Delrin - Tall	1	102498	CAD	13/16	5/8	1	1/2	1/4	1/2-13	40	3/16	5/8	BUB-600-D-T
BUH-0515-D	BUH-0124-D	BUH-0515-D	Hex Design Swivot - 1/2-13 X 1-1/2 in - Delrin	1	102617	CAD	13/16	5/8	1-1/2	1/2	1/8	1/2-13	40	3/16	5/8	BUB-600-D
BUH-0515-D-T	BUH-0124-D	BUH-0515-D-T	Hex Design Swivot - 1/2-13 X 1-1/2 in - Delrin - Tall	1	102621	CAD	13/16	5/8	1-1/2	1/2	1/4	1/2-13	40	3/16	5/8	BUB-600-D-T
BUH-0240-D	BUH-0124-D	BUH-0240-D	Hex Design Swivot - 1/2-20 X 1 in - Delrin	1	102109	CAD	13/16	5/8	1	1/2	1/8	1/2-20	40	3/16	5/8	BUB-600-D
BUH-0240-D-T	BUH-0124-D	BUH-0240-D-T	Hex Design Swivot - 1/2-20 X 1 in - Delrin - Tall	1	102116	CAD	13/16	5/8	1	1/2	1/4	1/2-20	40	3/16	5/8	BUB-600-D-T
BUH-0500-D	BUH-0124-D	BUH-0500-D	Hex Design Swivot - 1/2-20 X 1-1/2 in - Delrin	1	102364	CAD	13/16	5/8	1-1/2	1/2	1/8	1/2-20	40	3/16	5/8	BUB-600-D
BUH-0500-D-T	BUH-0124-D	BUH-0500-D-T	Hex Design Swivot - 1/2-20 X 1-1/2 in - Delrin - Tall	1	102372	CAD	13/16	5/8	1-1/2	1/2	1/4	1/2-20	40	3/16	5/8	BUB-600-D-T
BUH-0625-D	BUH-0124-D	BUH-0625-D	Hex Design Swivot - 5/8-11 X 1 in - Delrin	1	102893	CAD	15/16	11/16	1	5/8	1/8	5/8-11	34	1/4	3/4	BUB-700-D
BUH-0625-D-T	BUH-0124-D	BUH-0625-D-T	Hex Design Swivot - 5/8-11 X 1 in - Delrin - Tall	1	102896	CAD	15/16	11/16	1	5/8	1/4	5/8-11	34	1/4	3/4	BUB-700-D-T
BUH-0625X2-D	BUH-0124-D	BUH-0625X2-D	Hex Design Swivot - 5/8-11 X 2 in - Delrin	1	103020	CAD	15/16	11/16	2	5/8	1/8	5/8-11	34	1/4	3/4	BUB-700-D
BUH-0625X2-D-T	BUH-0124-D	BUH-0625X2-D-T	Hex Design Swivot - 5/8-11 X 2 in - Delrin - Tall	1	103027	CAD	15/16	11/16	2	5/8	1/4	5/8-11	34	1/4	3/4	BUB-700-D-T
BUH-0620-D	BUH-0124-D	BUH-0620-D	Hex Design Swivot - 5/8-18 X 1 in - Delrin	1	102720	CAD	15/16	11/16	1	5/8	1/8	5/8-18	34	1/4	3/4	BUB-700-D
BUH-0620-D-T	BUH-0124-D	BUH-0620-D-T	Hex Design Swivot - 5/8-18 X 1 in - Delrin - Tall	1	102729	CAD	15/16	11/16	1	5/8	1/4	5/8-18	34	1/4	3/4	BUB-700-D-T
BUH-0620X2-D	BUH-0124-D	BUH-0620X2-D	Hex Design Swivot - 5/8-18 X 2 in - Delrin	1	102818	CAD	15/16	11/16	2	5/8	1/8	5/8-18	34	1/4	3/4	BUB-700-D
BUH-0620X2-D-T	BUH-0124-D	BUH-0620X2-D-T	Hex Design Swivot - 5/8-18 X 2 in - Delrin - Tall	1	102820	CAD	15/16	11/16	2	5/8	1/4	5/8-18	34	1/4	3/4	BUB-700-D-T
