Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MBUH-D)

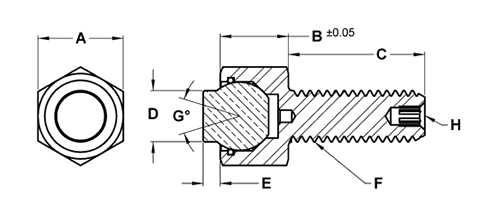

Drawing
Description
Media

Description

The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

MBUH-06012-D

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8	9
MBUH-06012-D	MBUH-06012-D	MBUH-06012-D	Hex Design Swivot - M6 X 12 mm - Delrin	1	101810	CAD	10	8	12	6	1.5	M6x1.0	28	—	7	MBUB-070-D
MBUH-06012-D-T	MBUH-06012-D	MBUH-06012-D-T	Hex Design Swivot - M6 X 12 mm - Delrin - Tall	1	101812	CAD	10	8	12	6	3	M6x1.0	28	—	7	MBUB-070-D-T
MBUH-06025-D	MBUH-06012-D	MBUH-06025-D	Hex Design Swivot - M6 X 25 mm - Delrin	1	101878	CAD	10	8	25	6	1.5	M6x1.0	28	—	7	MBUB-070-D
MBUH-06025-D-T	MBUH-06012-D	MBUH-06025-D-T	Hex Design Swivot - M6 X 25 mm - Delrin - Tall	1	101885	CAD	10	8	25	6	3	M6x1.0	28	—	7	MBUB-070-D-T
MBUH-06040-D	MBUH-06012-D	MBUH-06040-D	Hex Design Swivot - M6 X 40 mm - Delrin	1	101938	CAD	10	8	40	6	1.5	M6x1.0	28	—	7	MBUB-070-D
MBUH-06040-D-T	MBUH-06012-D	MBUH-06040-D-T	Hex Design Swivot - M6 X 40 mm - Delrin - Tall	1	101942	CAD	10	8	40	6	3	M6x1.0	28	—	7	MBUB-070-D-T
MBUH-08012-D	MBUH-06012-D	MBUH-08012-D	Hex Design Swivot - M8 X 12 mm - Delrin	1	102020	CAD	13	11.5	12	8.5	1.5	M8x1.25	24	—	10	MBUB-100-D
MBUH-08012-D-T	MBUH-06012-D	MBUH-08012-D-T	Hex Design Swivot - M8 X 12 mm - Delrin - Tall	1	102026	CAD	13	11.5	12	8.5	3	M8x1.25	24	—	10	MBUB-100-D-T
MBUH-08025-D	MBUH-06012-D	MBUH-08025-D	Hex Design Swivot - M8 X 25 mm - Delrin	1	102093	CAD	13	11.5	25	8.5	1.5	M8x1.25	24	—	10	MBUB-100-D
MBUH-08025-D-T	MBUH-06012-D	MBUH-08025-D-T	Hex Design Swivot - M8 X 25 mm - Delrin - Tall	1	102100	CAD	13	11.5	25	8.5	3	M8x1.25	24	—	10	MBUB-100-D-T
MBUH-08040-D	MBUH-06012-D	MBUH-08040-D	Hex Design Swivot - M8 X 40 mm - Delrin	1	102165	CAD	13	11.5	40	8.5	1.5	M8x1.25	24	—	10	MBUB-100-D
MBUH-08040-D-T	MBUH-06012-D	MBUH-08040-D-T	Hex Design Swivot - M8 X 40 mm - Delrin - Tall	1	102185	CAD	13	11.5	40	8.5	3	M8x1.25	24	—	10	MBUB-100-D-T
MBUH-10015-D	MBUH-06012-D	MBUH-10015-D	Hex Design Swivot - M10 X 15 mm - Delrin	1	102297	CAD	17	13	15	10	4	M10x1.5	42	3	13	MBUB-130-D
MBUH-10015-D-T	MBUH-06012-D	MBUH-10015-D-T	Hex Design Swivot - M10 X 15 mm - Delrin - Tall	1	102299	CAD	17	13	15	10	6	M10x1.5	42	3	13	MBUB-130-D-T
MBUH-10030-D	MBUH-06012-D	MBUH-10030-D	Hex Design Swivot - M10 X 30 mm - Delrin	1	102419	CAD	17	13	30	10	4	M10x1.5	42	3	13	MBUB-130-D
MBUH-10030-D-T	MBUH-06012-D	MBUH-10030-D-T	Hex Design Swivot - M10 X 30 mm - Delrin - Tall	1	102424	CAD	17	13	30	10	6	M10x1.5	42	3	13	MBUB-130-D-T
MBUH-10050-D	MBUH-06012-D	MBUH-10050-D	Hex Design Swivot - M10 X 50 mm - Delrin	1	102478	CAD	17	13	50	10	4	M10x1.5	42	3	13	MBUB-130-D
MBUH-10050-D-T	MBUH-06012-D	MBUH-10050-D-T	Hex Design Swivot - M10 X 50 mm - Delrin - Tall	1	102485	CAD	17	13	50	10	6	M10x1.5	42	3	13	MBUB-130-D-T
MBUH-12020-D	MBUH-06012-D	MBUH-12020-D	Hex Design Swivot - M12 X 20 mm - Delrin	1	102572	CAD	19	15	20	12	4	M12x1.75	45	5	15	MBUB-150-D
MBUH-12020-D-T	MBUH-06012-D	MBUH-12020-D-T	Hex Design Swivot - M12 X 20 mm - Delrin - Tall	1	102583	CAD	19	15	20	12	6	M12x1.75	45	5	15	MBUB-150-D-T
MBUH-12040-D	MBUH-06012-D	MBUH-12040-D	Hex Design Swivot - M12 X 40 mm - Delrin	1	102673	CAD	19	15	40	12	4	M12x1.75	45	5	15	MBUB-150-D
MBUH-12040-D-T	MBUH-06012-D	MBUH-12040-D-T	Hex Design Swivot - M12 X 40 mm - Delrin - Tall	1	102676	CAD	19	15	40	12	6	M12x1.75	45	5	15	MBUB-150-D-T
MBUH-12060-D	MBUH-06012-D	MBUH-12060-D	Hex Design Swivot - M12 X 60 mm - Delrin	1	102750	CAD	19	15	60	12	4	M12x1.75	45	5	15	MBUB-150-D
MBUH-12060-D-T	MBUH-06012-D	MBUH-12060-D-T	Hex Design Swivot - M12 X 60 mm - Delrin - Tall	1	102754	CAD	19	15	60	12	6	M12x1.75	45	5	15	MBUB-150-D-T
MBUH-16025-D	MBUH-06012-D	MBUH-16025-D	Hex Design Swivot - M16 X 25 mm - Delrin	1	102852	CAD	24	19	25	16	4	M16x2.0	40	6	20	MBUB-200-D
MBUH-16050-D	MBUH-06012-D	MBUH-16050-D	Hex Design Swivot - M16 X 50 mm - Delrin	1	102925	CAD	24	19	50	16	4	M16x2.0	40	6	20	MBUB-200-D
MBUH-16080-D	MBUH-06012-D	MBUH-16080-D	Hex Design Swivot - M16 X 80 mm - Delrin	1	102978	CAD	24	19	80	16	4	M16x2.0	40	6	20	MBUB-200-D
