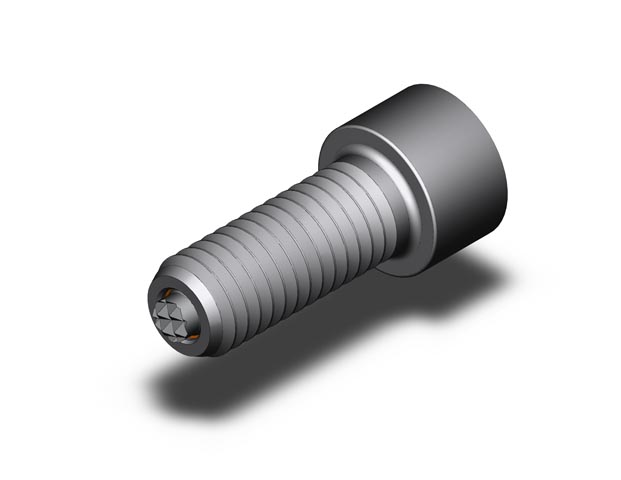

Headed Thrust Screw - Serrated Steel Ball - 3/8-16 X 1 in

Part Number: TSH-0375-S
Weight: 0 lbs 1 ozs
Thread - External: 3/8-16
Length - Shank: 1
Length - Thread: 1
Diameter - Contact Surface: 5/32
Degree Swivel: 28
Diameter - Ball: 3/16
Hex - Internal - Flat: 5/16
Ball Only Part No.: BUB-187-S
Load - Rating: 1,763
Tooth Pattern: SF

Part:TSH-0375-S

TSH-0375-S

Download

Download CAD models here
