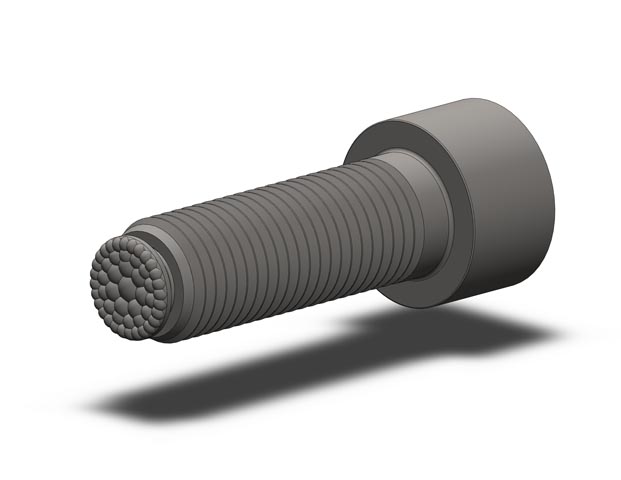

Headed Thrust Screw - Sof-Top - 1-8 X 3 - 80 Dur

Part Number: TSH-1108X3-FC-80UR
Weight: 0 lbs 15 ozs
Thread - External: 1"-8
Length - Shank: 3
Length - Thread: 3
Diameter - Contact Surface: .827
Degree Swivel: 32
Diameter - Ball: 5/8
Hex - Internal - Flat: 3/4
Ball Only Part No.: BUB-600-FC-80UR
Durometer: 80
Thickness - Urethane: .08
Load Compression: 525

Part:TSH-1108X3-FC-80UR

TSH-1108X3-FC-80UR
