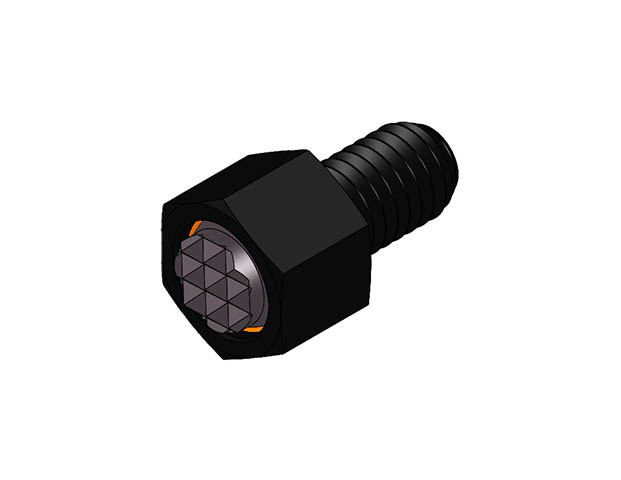

Hex Design Swivot - 5/16-18 X 1/2 in - Extra Fine

Part Number: BUH-0310-S
Hex - External - Flat: 1/2
Diameter - Contact Surface: 5/16
Height - Head: 3/8
Length - Thread: 1/2
Thread - External: 5/16-18
Degree Swivel: 28
Diameter - Ball: 3/8
Ball Only Part No.: BUB-300-S
Hex - Internal: —
Rating - Load: 2,792
Tooth Pattern: EF

Part:BUH-0310-S

BUH-0310-S
