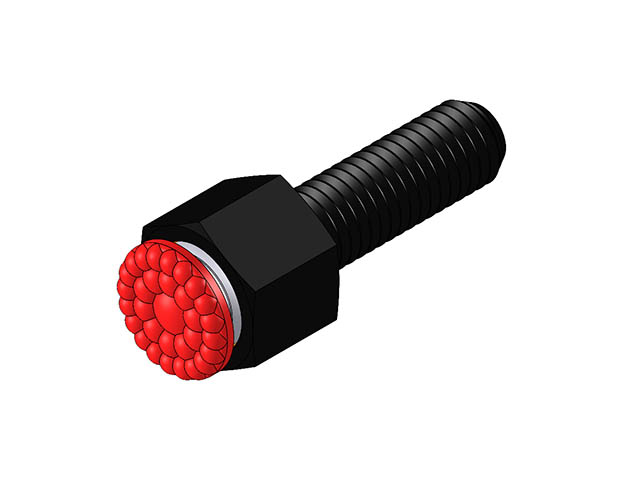

Hex Design Swivot - M10 X 1.5 X 30 mm - Sof-Top - 80 Dur

Part Number: MBUH-10030-FC-80UR
Weight: 0 lbs 1 ozs
Hex - External - Flat: 17
Height - Head: 13
Length - Thread: 30
Diameter - Contact Surface: 16
Thread - External: M10x1.5
Degree - Swivel: 28
Diameter - Ball: 13
Ball Only Part No.: MBUB-130-FC-80UR
Compression - Load: 215
Durometer: 80
Hex - Internal - Flat: 3
Thickness - Urethane: 2

Part:MBUH-10030-FC-80UR

MBUH-10030-FC-80UR
