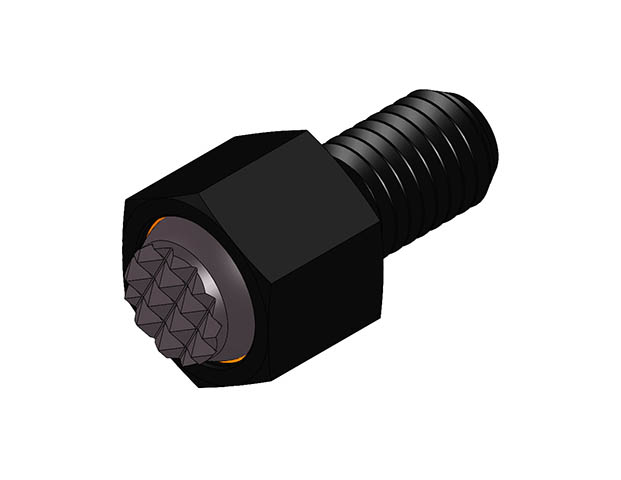

Hex Design Swivot - M12 X 20 mm - Fine

Part Number: MBUH-12020-S
Weight: 0 lbs 2 ozs
Hex - External - Flat: 19
Height - Head: 15
Length - Thread: 20
Diameter - Contact Surface: 12
Thread - External: M12x1.75
Degree - Swivel: 45
Diameter - Ball: 15
Ball Only Part No.: MBUB-150-S
Hex - Internal - Flat: 5
Rating - Load: 6,627
Tooth Pattern: Fine

Part:MBUH-12020-S

MBUH-12020-S

Download

Download CAD models here
