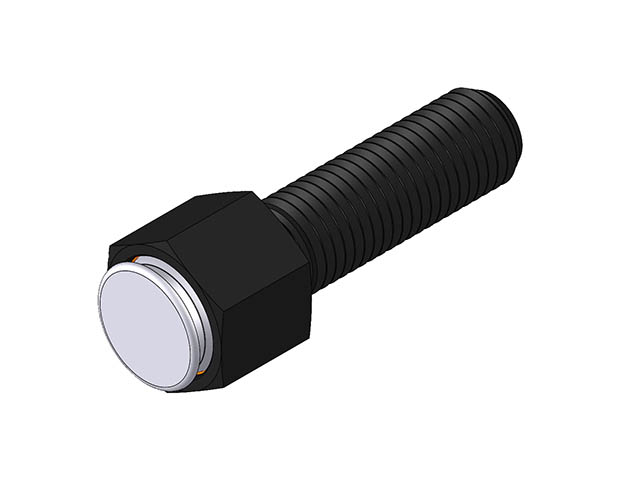

Hex Design Swivot - M16 X 2.0 X 50 mm - SS Cone

Part Number: MBUH-16050-FC
Weight: 0 lbs 5 ozs
Diameter - Overall: 24
Height - Head: 19
Length - Thread: 50
Diameter - Contact Surface: 21
Thread - External: M16x2.0
Degree - Swivel: 24
Diameter - Ball: 20
Ball Only Part No.: MBUB-200-FC
Hex - Internal - Flat: 6
Rating - Load: 11,183
