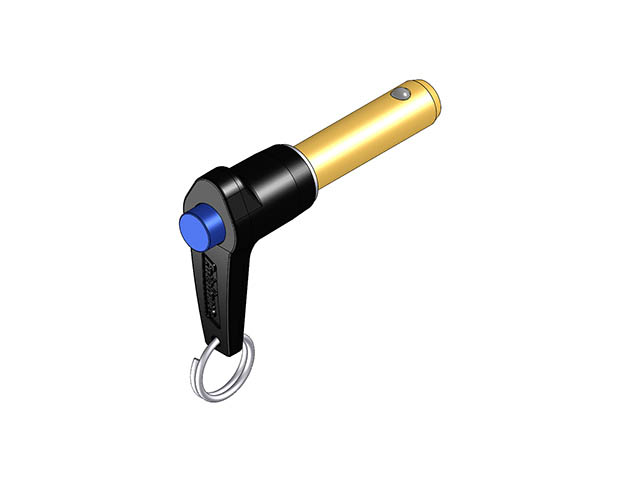

L-Handle Pin - 4130 Shank - 5/8 in Dia X 1.75 in

Part Number: LAAS-62-175
Weight: 0 lbs 5 ozs
Diameter - Nominal: 5/8
Diameter - Shaft - Max: 0.6235
Diameter - Shaft - Min: 0.6220
Length - Grip: 1.75
Width - at Balls: 0.750
Length - to top of Balls: 0.580
Height - Head: 1.77
Diameter - Base of Handle: 0.94
Height - Base of Handle: 1.11
Diameter - Button: 0.54
Length - Handle: 2.69

Part:LAAS-62-175

LAAS-62-175

Download

Download CAD models here
