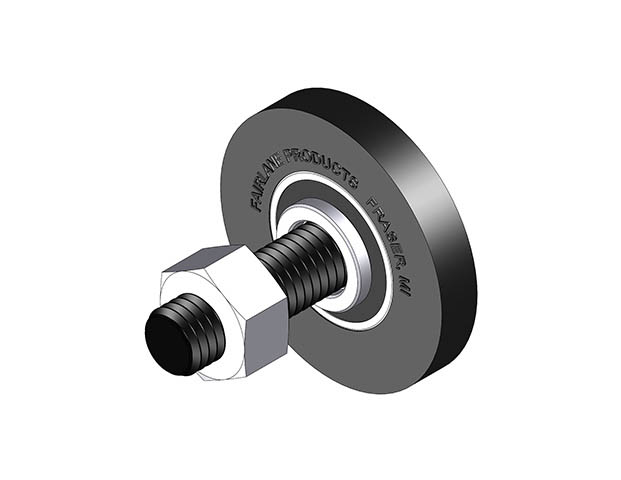

M12x1.75 2RS x 50mmDIA x 8mm WD

Part Number: MCB-125008-95UR-C
Weight: 0 lbs 4 ozs
Diameter - Outside: 50
Width - Roller: 8
Thread - External: M12X1.75
Length - Thread to Roller: 37
Height - Standoff - Spacer: 3
Thickness - Urethane: 11
Height - Cap - Screw: 6.6
Bearing Number: 6001-2RS
Durometer: 95

Part:MCB-125008-95UR-C

MCB-125008-95UR-C

Download

Download CAD models here
