Home > Rollers & Bumpers > Rollers > Covered Bearings > Covered Bearings > Double Bearing (Metric)

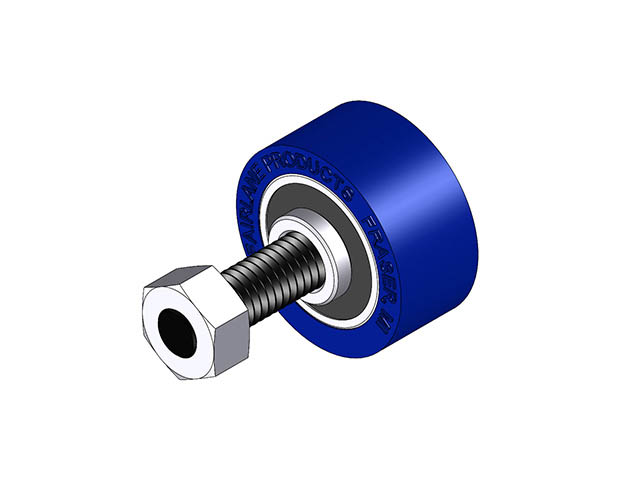

M8x1.25 2RS x 30mmDIA x 14mm WD

Part Number: MCBD-083014-60UR-C
Weight: 0 lbs 4 ozs
Diameter - Outside: 30
Width - Roller: 14
Thread - External: M8X1.25
Length - Thread to Roller: 26
Height - Standoff - Spacer: 3
Thickness - Urethane: 4
Height - Cap - Screw: 4.4
Bearing Number: 608-2RS
Durometer: 60

Part:MCBD-083014-60UR-C

MCBD-083014-60UR-C

Download

Download CAD models here
