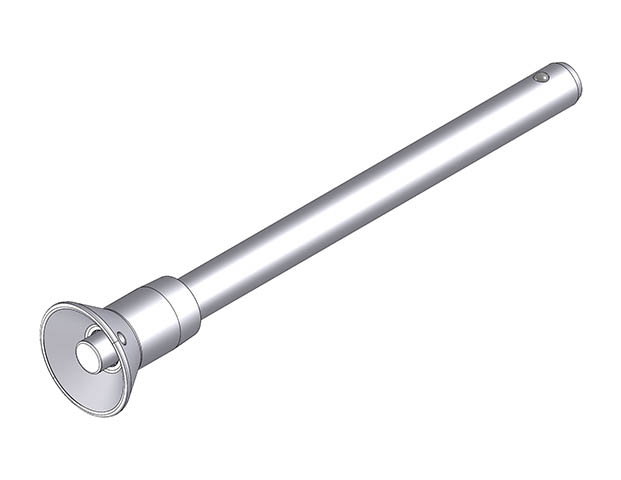

Nautical Handle Pin - 300 Series SS Shank - 3/8 in X 4.00 in

Part Number: NCCS-37-400
Weight: 0 lbs 3 ozs
Diameter - Nominal: 3/8
Diameter - Shaft - Max: 0.3735
Diameter - Shaft - Min: 0.372
Length - Grip: 4
Width - at Balls: 0.44
Length - to top of Balls: 0.365
Height - Handle: 1.06
Diameter - Base of Handle: 0.56
Height - Base of Handle: 0.66
Diameter - Button: 0.29
Diameter - Handle - Rim: 0.94

Part:NCCS-37-400

NCCS-37-400
