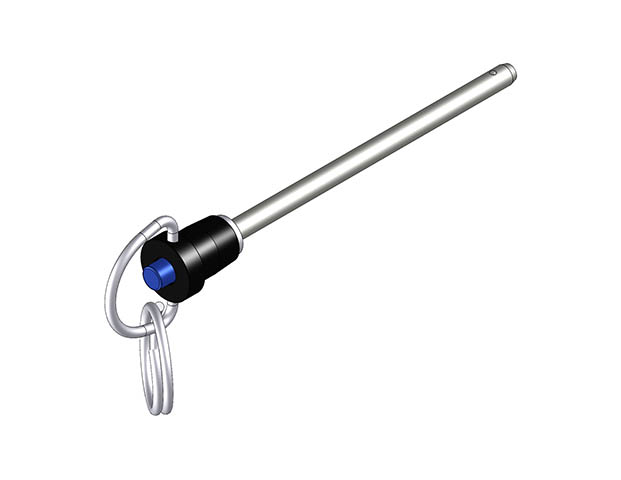

Ring Handle Pin - 17-4 SS Shank - 5mm Dia X 80mm

Part Number: MRACH-05-080
Weight: 0 lbs 1 ozs
Diameter - Nominal: 5
Diameter - Shaft - Max: 4.96
Diameter - Shaft - Min: 4.92
Length - Grip: 80
Width - at Balls: 5.54
Length - to top of Balls: 6
Height - Handle: 23.4
Diameter - Base of Handle: 11.9
Diameter - Button: 5.8
Diameter - Handle - Rim: 15.0
Height - Handle And Ring (Extended): 36.8
Width - Ring: 29.5

Part:MRACH-05-080

MRACH-05-080
