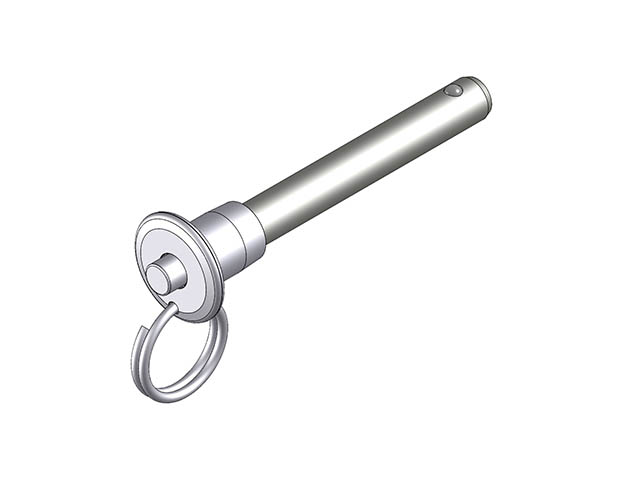

SS Button Handle Pin - 17-4 SS Shank - 10mm Dia X 60mm

Part Number: MBCCH-10-060
Weight: 0 lbs 3 ozs
Diameter - Nominal: 10
Diameter - Shaft - Max: 9.96
Diameter - Shaft - Min: 9.92
Length - Grip: 60
Diameter - at Balls: 11.86
Length - to top of Balls: 9
Height - Handle: 25.7
Width - Overall: 25.4
Width - Shoulder: 14.2
Length - Handle Below Rim: 17.8
Diameter - Button: 7.4

Part:MBCCH-10-060

MBCCH-10-060

Download

Download CAD models here
