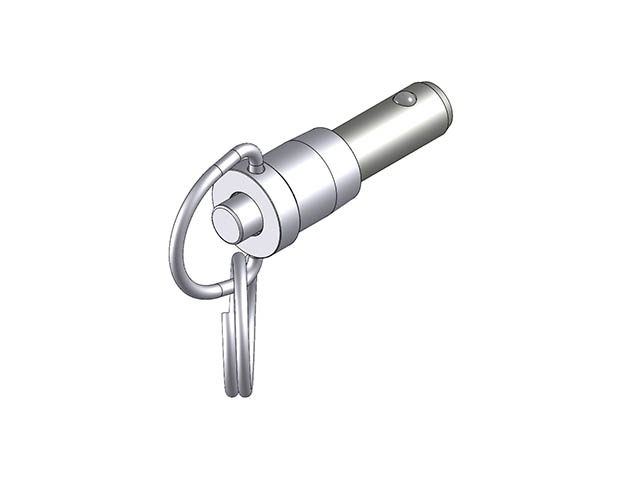

SS Ring Handle Pin - 17-4 SS Shank - 10mm Dia X 15mm

Part Number: MRCCH-10-015
Weight: 0 lbs 1 ozs
Diameter - Nominal: 10
Diameter - Shaft - Max: 9.96
Diameter - Shaft - Min: 9.92
Length - Grip: 15
Width - at Balls: 11.86
Length - to top of Balls: 9
Height - Handle: 25.7
Diameter - Base of Handle: 14.2
Diameter - Button: 7.4
Diameter - Handle - Rim: 16.5
Height - Handle And Ring (Extended): 38.6
Width - Ring: 29.5

Part:MRCCH-10-015

MRCCH-10-015
