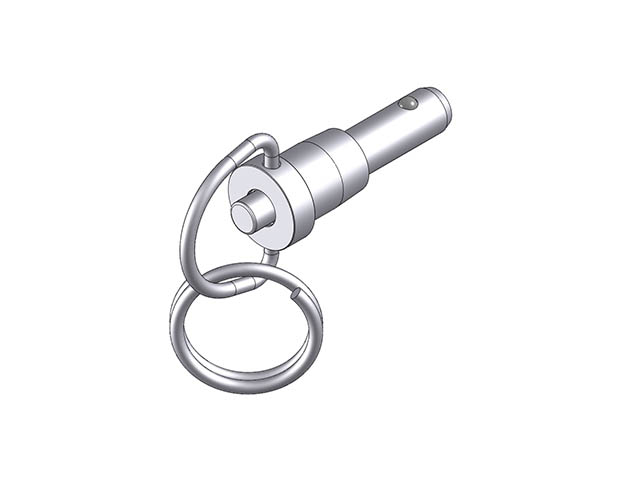

SS Ring Handle Pin - 300 Series SS Shank - 5/16 in X .50 in

Part Number: RCCS-31-050
Weight: 0 lbs 1 ozs
Diameter - Nominal: 5/16
Diameter - Shaft - Max: .3110
Diameter - Shaft - Min: .3095
Length - Grip: .50
Width - at Balls: .375
Length - to top of Balls: .330
Height - Handle: .92
Diameter - Base of Handle: .47
Diameter - Button: .23
Diameter - Handle - Rim: .59
Height - Handle And Ring (Extended): 1.45
Width - Ring: 1.16

Part:RCCS-31-050

RCCS-31-050
