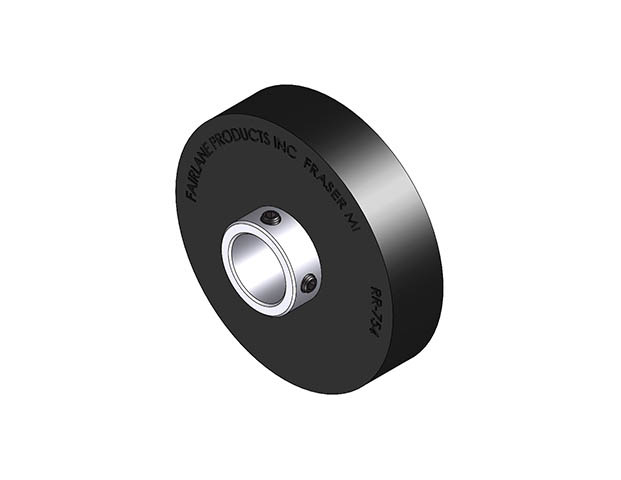

Solid Roller - 1 in Shaft Drive - 60 Dur Neoprene - 4.00 in Dia X 0.92 in Wide

Part Number: RR-9754-60-EX10
Weight: 0 lbs 11 ozs
Diameter - Overall: 4.00
Material: Neoprene
Width - Roller: .92
Diameter - Inside - Hub: 1.001/1.006
Diameter - Inside - Roller: 1.37
Height - Standoff - Hub: .50
Durometer: 60

Part:RR-9754-60-EX10

RR-9754-60-EX10

Download

Download CAD models here
