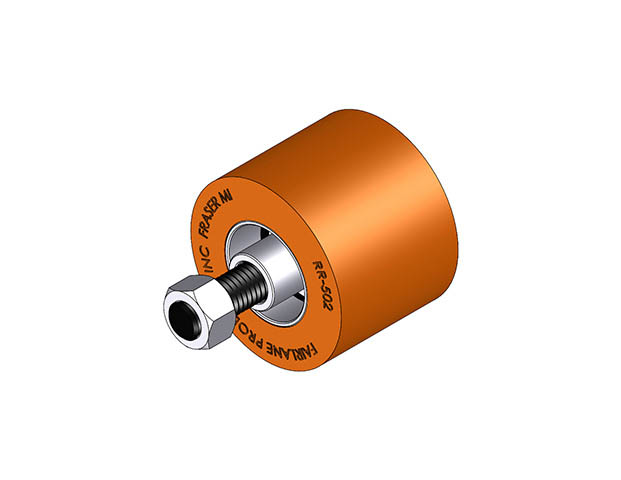

Solid Roller - Standard Stud Mount - 95 Dur Urethane - 2.50 in Dia X 1.94 in Wide

Part Number: RR-502-95UR-C
Weight: 0 lbs 13 ozs
Diameter - Overall: 2.50
Material: Urethane
Width - Roller: 1.94
Thread - External: 1/2-13 x 2.75 SHCS
Length - Stud: 1.41
Height - Standoff - Spacer: .25
No. of Bearings: 1
Bearing Type: C
Durometer: 95

Part:RR-502-95UR-C

RR-502-95UR-C

Download

Download CAD models here
