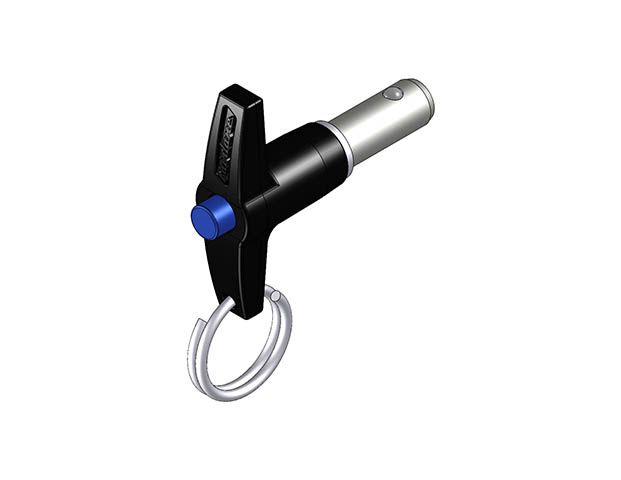

T-Handle Pin - 17-4 SS Shank - 10mm Dia X 15mm

Part Number: MTACH-10-015
Weight: 0 lbs 1 ozs
Diameter - Nominal: 10
Diameter - Shaft - Max: 9.96
Diameter - Shaft - Min: 9.92
Length - Grip: 15
Width - at Balls: 11.86
Length - to top of Balls: 9
Height - Handle: 34.8
Diameter - Base of Handle: 14.2
Height - Base of Handle: 22.1
Diameter - Button: 7.4
Diameter - Handle - Rim: 50.8

Part:MTACH-10-015

MTACH-10-015

Download

Download CAD models here
