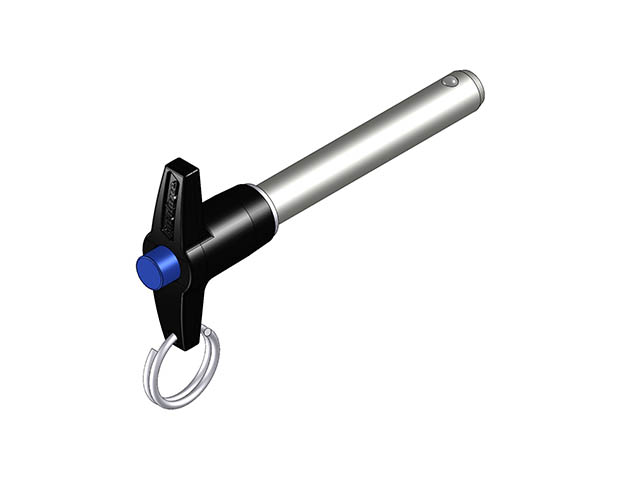

T-Handle Pin - 17-4 SS Shank - 12mm Dia X 70mm

Part Number: MTACH-12-070
Weight: 0 lbs 4 ozs
Diameter - Nominal: 12
Diameter - Shaft - Max: 11.96
Diameter - Shaft - Min: 11.92
Length - Grip: 70
Width - at Balls: 14.45
Length - to top of Balls: 10
Height - Handle: 40.6
Diameter - Base of Handle: 18.3
Height - Base of Handle: 25.4
Diameter - Button: 10.7
Diameter - Handle - Rim: 57.2

Part:MTACH-12-070

MTACH-12-070
