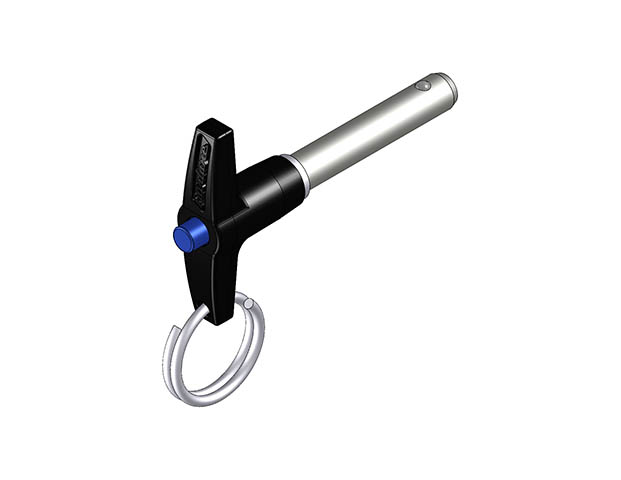

T-Handle Pin - 17-4 SS Shank - 8mm Dia X 35mm

Part Number: MTACH-08-035
Weight: 0 lbs 1 ozs
Diameter - Nominal: 8
Diameter - Shaft - Max: 7.96
Diameter - Shaft - Min: 7.92
Length - Grip: 35
Width - at Balls: 9.42
Length - to top of Balls: 8
Height - Handle: 30.7
Diameter - Base of Handle: 11.9
Height - Base of Handle: 19.3
Diameter - Button: 5.8
Diameter - Handle - Rim: 46.0

Part:MTACH-08-035

MTACH-08-035
