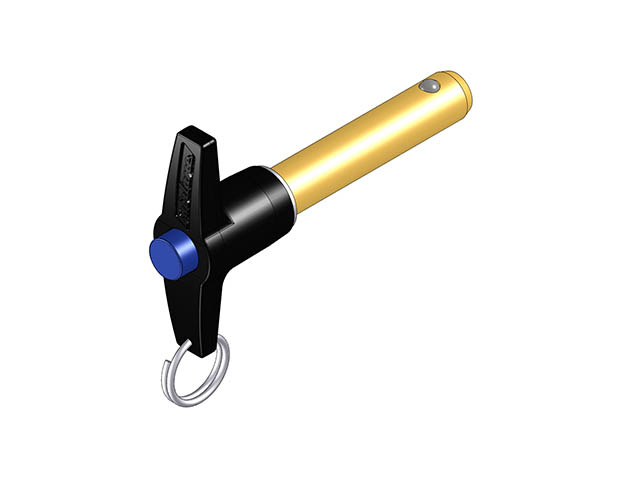

T-Handle Pin - 4130 Shank - 5/8 in Dia X 2.50 in

Part Number: TAAS-62-250
Weight: 0 lbs 6 ozs
Diameter - Nominal: 5/8
Diameter - Shaft - Max: 0.6235
Diameter - Shaft - Min: 0.6220
Length - Grip: 2.50
Width - at Balls: 0.750
Length - to top of Balls: 0.580
Height - Handle: 1.77
Diameter - Base of Handle: 0.94
Height - Base of Handle: 1.11
Diameter - Button: 0.54
Diameter - Handle - Rim: 3.07

Part:TAAS-62-250

TAAS-62-250
