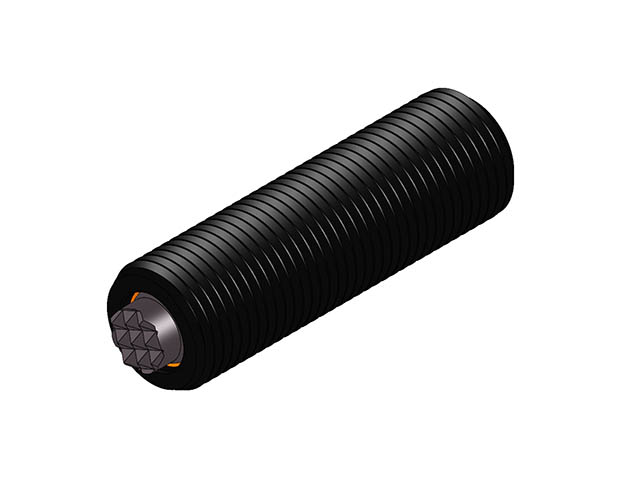

Threaded Design Swivot - 5/8-11 X 2 - Extra Fine - Tall

Part Number: TBU-0625X2-S-T
Weight: 0 lbs 2 ozs
Thread - External: 5/8-11
Length - Thread: 2
Diameter - Contact Surface: 5/16
Degree Swivel: 28
Hex - Internal - Flat: 5/16
Diameter - Ball: 3/8
Ball Only Part No.: BUB-300-S-T
Load - Rating: 6,131
Tooth Pattern: EF

Part:TBU-0625X2-S-T

TBU-0625X2-S-T
