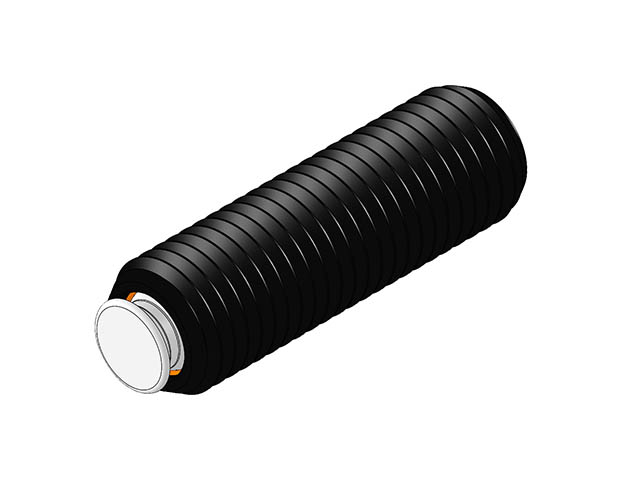

Threaded Design Swivot - M16 X 2.0 X 50 mm - Delrin Cone

Part Number: MTBU-16050-DC
Weight: 0 lbs 2 ozs
Thread - External: M16x2.0
Length - Thread: 50
Diameter - Contact Surface: 11
Degree- Swivel: 28
Hex - Internal - Flat: 8
Diameter - Ball: 10
Ball Only Part No.: MBUB-100-DC

Part:MTBU-16050-DC

MTBU-16050-DC

Download

Download CAD models here
