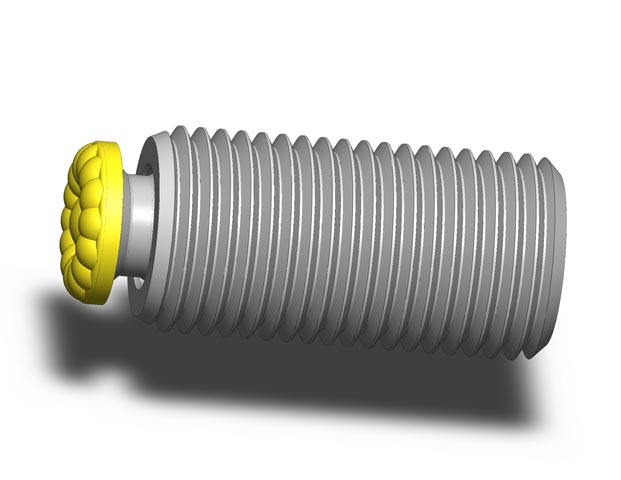

Threaded Thrust Screw - Sof-Top - 1/2-20 X 1 - 35 Dur

Part Number: TST-0500-FC-35UR
Weight: 0 lbs 1 ozs
Thread - External: 1/2-20
Length - Thread: 1
Diameter - Contact Surface: .394
Degree Swivel: 28
Hex - Internal - Flat: 1/4
Diameter - Ball: 9/32
Ball Only Part No.: BUB-200-FC-35UR
Durometer: 35
Thickness - Urethane: .08
Load Compression: 8

Part:TST-0500-FC-35UR

TST-0500-FC-35UR

Download

Download CAD models here
