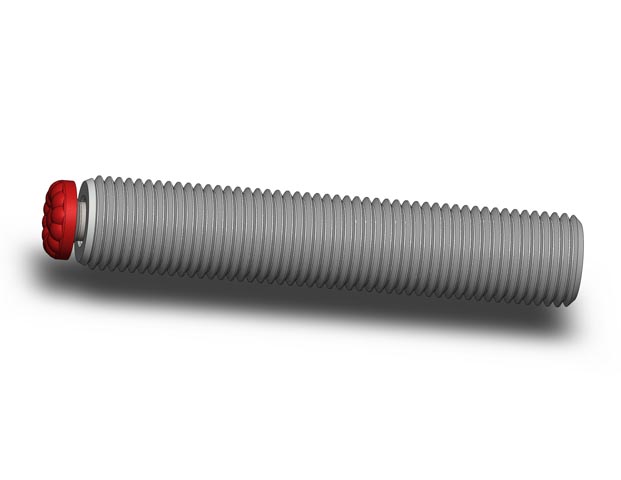

Threaded Thrust Screw - Sof-Top - 3/8-24 X 2 - 80 Dur

Part Number: TST-0231X2-FC-80UR
Weight: 0 lbs 1 ozs
Thread - External: 3/8-24
Length - Thread: 2
Diameter - Contact Surface: .315
Degree Swivel: 28
Hex - Internal - Flat: 3/16
Diameter - Ball: 3/16
Ball Only Part No.: BUB-187-FC-80UR
Durometer: 80
Thickness - Urethane: .08
Load Compression: 40

Part:TST-0231X2-FC-80UR

TST-0231X2-FC-80UR
