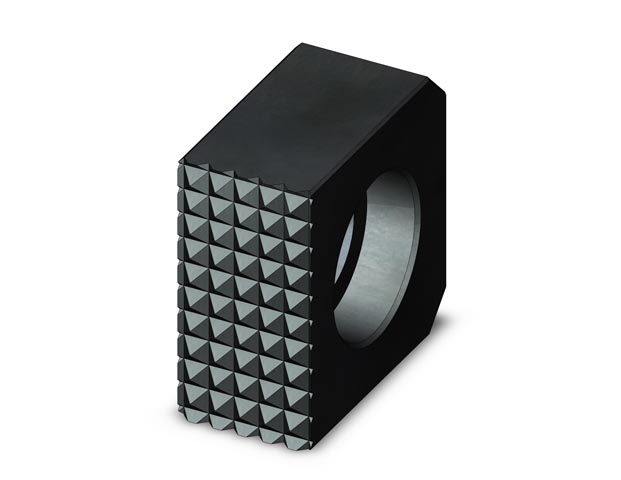

Tool Steel Gripper - Edge - 1 in X 1/2 in - Extra Fine

Part Number: HSE-105-EF
Weight: 0 lbs 2 ozs
Width - Overall: 1
Height - Overall: 1/2
Height - C'Bore: .194
C'Bore For screw - mounting (clearance): 3/8 LHCS
Chamfer: 1/8x45°
Tooth Pattern: EF

Part:HSE-105-EF

HSE-105-EF
