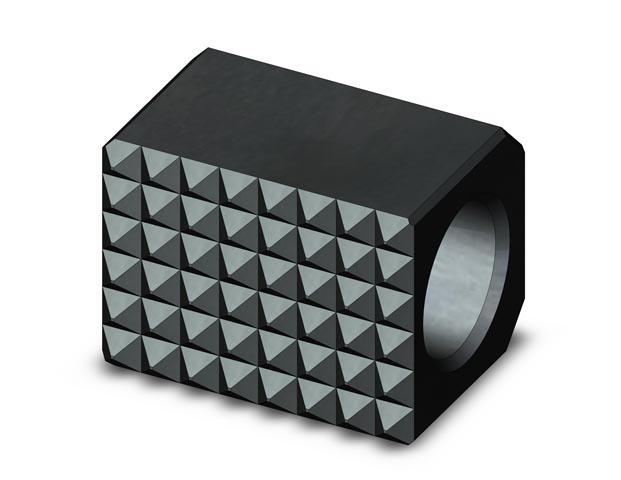

Tool Steel Gripper - Edge - 3/8 in X 1/2 in - Super Fine

Part Number: HSE-905-SF
Width - Overall: 3/8
Height - Overall: 1/2
Height - C'Bore: .146
C'Bore For screw - mounting (clearance): #6 SHCS
Chamfer: 1/16x45°
Tooth Pattern: SF

Part:HSE-905-SF

HSE-905-SF

Download

Download CAD models here
