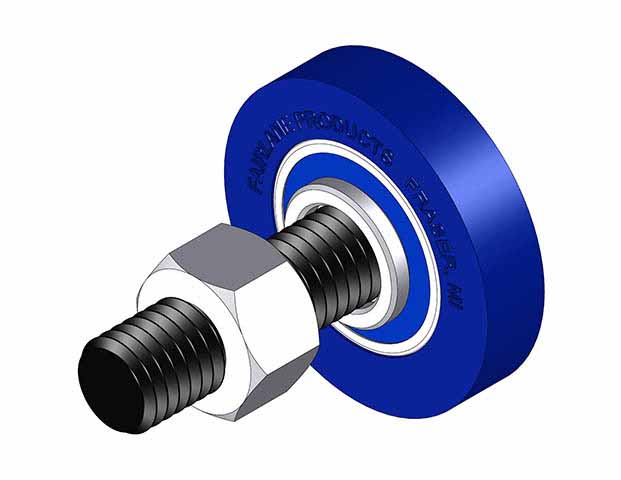

Urethane Covered Bearing - Stud Mount - 60 Dur - 1.75 in Dia X .375 in Width - 1/2-13 Thread

Part Number: CB-082806-60UR-C
Weight: 0 lbs 4 ozs
Diameter - Outside: 1.75
Width - Roller: .375
Thread - External: 1/2-13
Length - Thread to Roller: 1.625
Height - Standoff - Spacer: .12
Thickness - Urethane: .31
Height - Cap - Screw: .266
Bearing Number: 1616-2RS
Durometer: 60

Part:CB-082806-60UR-C

CB-082806-60UR-C

Download

Download CAD models here
