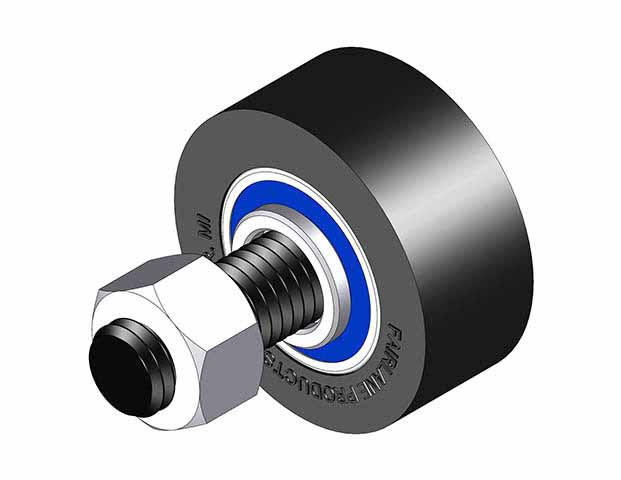

Urethane Covered Bearings - Stud Mount - 95 Dur - 1.75 in Dia X .750 in Width - 1/2-13 Thread

Part Number: CBD-082812-95UR-C
Weight: 0 lbs 5 ozs
Diameter - Outside: 1.75
Width - Roller: .750
Thread - External: 1/2-13
Length - Thread to Roller: 1.250
Height - Standoff - Spacer: .12
Thickness - Urethane: .31
Height - Cap - Screw: .266
Bearing Number: 1616-2RS
Durometer: 95

Part:CBD-082812-95UR-C

CBD-082812-95UR-C
