Full Threaded Swivots® Gripper Assembly - Flat Delrin Ball - Inch (TBU-D)
TBU-0370-D

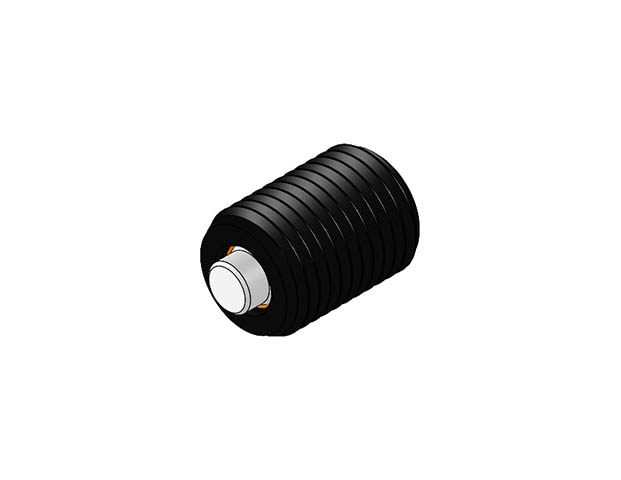

Threaded Design Swivot - 3/8-16 X 1/2 - Delrin

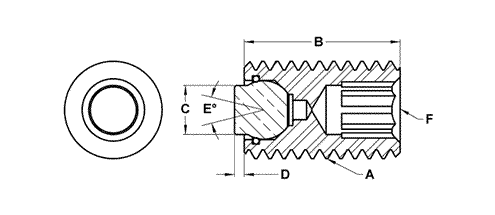

| Part # | A Thread | B Thread Length in | C Contact Dia in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Dia in | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|
| TBU-0230-D | 3/8-24 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-D | |
| TBU-0231-D | 3/8-24 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-D | |
| TBU-0231X2-D | 3/8-24 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-D | |
| TBU-0231X3-D | 3/8-24 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-D | |
| TBU-0370-D | 3/8-16 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-D | |
| TBU-0375-D | 3/8-16 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-D | |
| TBU-0375X2-D | 3/8-16 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-D | |
| TBU-0375X3-D | 3/8-16 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | BUB-187-D | |
| TBU-0500-D | 1/2-20 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-D | |
| TBU-0500-D-T | 1/2-20 | 1 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-D-T | |
| TBU-0500X2-D | 1/2-20 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-D | |
| TBU-0500X2-D-T | 1/2-20 | 2 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-D-T | |
| TBU-0500X3-D | 1/2-20 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-D | |
| TBU-0500X3-D-T | 1/2-20 | 3 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-D-T | |
| TBU-0503-D | 1/2-20 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-D | |
| TBU-0503-D-T | 1/2-20 | 3/4 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-D-T | |
| TBU-0510-D | 1/2-13 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-D | |
| TBU-0510-D-T | 1/2-13 | 1 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-D-T | |
| TBU-0510X2-D | 1/2-13 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-D | |
| TBU-0510X2-D-T | 1/2-13 | 2 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-D-T | |
| TBU-0510X3-D | 1/2-13 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-D | |
| TBU-0510X3-D-T | 1/2-13 | 3 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-D-T | |
| TBU-0513-D | 1/2-13 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | BUB-200-D | |
| TBU-0513-D-T | 1/2-13 | 3/4 | 1/4 | 1/8 | 28 | 1/4 | 9/32 | BUB-200-D-T | |
| TBU-0620-D | 5/8-18 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-D | |
| TBU-0620-D-T | 5/8-18 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-D-T | |
| TBU-0620X2-D | 5/8-18 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-D | |
| TBU-0620X2-D-T | 5/8-18 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-D-T | |
| TBU-0620X3-D | 5/8-18 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-D | |
| TBU-0620X3-D-T | 5/8-18 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-D-T | |
| TBU-0625-D | 5/8-11 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-D | |
| TBU-0625-D-T | 5/8-11 | 1 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-D-T | |
| TBU-0625X2-D | 5/8-11 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-D | |
| TBU-0625X2-D-T | 5/8-11 | 2 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-D-T | |
| TBU-0625X3-D | 5/8-11 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | BUB-300-D | |
| TBU-0625X3-D-T | 5/8-11 | 3 | 5/16 | 1/8 | 28 | 5/16 | 3/8 | BUB-300-D-T | |
| TBU-0750-D | 3/4-16 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-D | |
| TBU-0750-D-T | 3/4-16 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-D-T | |
| TBU-0750X2-D | 3/4-16 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-D | |
| TBU-0750X2-D-T | 3/4-16 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-D-T | |
| TBU-0750X3-D | 3/4-16 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-D | |
| TBU-0750X3-D-T | 3/4-16 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-D-T | |
| TBU-0755-D | 3/4-10 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-D | |
| TBU-0755-D-T | 3/4-10 | 1 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-D-T | |
| TBU-0755X2-D | 3/4-10 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-D | |
| TBU-0755X2-D-T | 3/4-10 | 2 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-D-T | |
| TBU-0755X3-D | 3/4-10 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | BUB-500-D | |
| TBU-0755X3-D-T | 3/4-10 | 3 | 3/8 | 1/4 | 40 | 3/8 | 1/2 | BUB-500-D-T | |
| TBU-1108-D | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-D | |
| TBU-1108-D-T | 1-8 | 1 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-D-T | |
| TBU-1108X2-D | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-D | |
| TBU-1108X2-D-T | 1-8 | 2 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-D-T | |
| TBU-1108X3-D | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | BUB-600-D | |
| TBU-1108X3-D-T | 1-8 | 3 | 1/2 | 1/4 | 40 | 3/8 | 5/8 | BUB-600-D-T | |
| TBU-1114-D | 1-14 | 1 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-D | |
| TBU-1114-D-T | 1-14 | 1 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-D-T | |
| TBU-1114X2-D | 1-14 | 2 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-D | |
| TBU-1114X2-D-T | 1-14 | 2 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-D-T | |
| TBU-1114X3-D | 1-14 | 3 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | BUB-700-D | |
| TBU-1114X3-D-T | 1-14 | 3 | 5/8 | 1/4 | 34 | 3/8 | 3/4 | BUB-700-D-T |
