Thrust Screws - Threaded Design - Serrated Tool Steel Ball - Inch (TST-S)

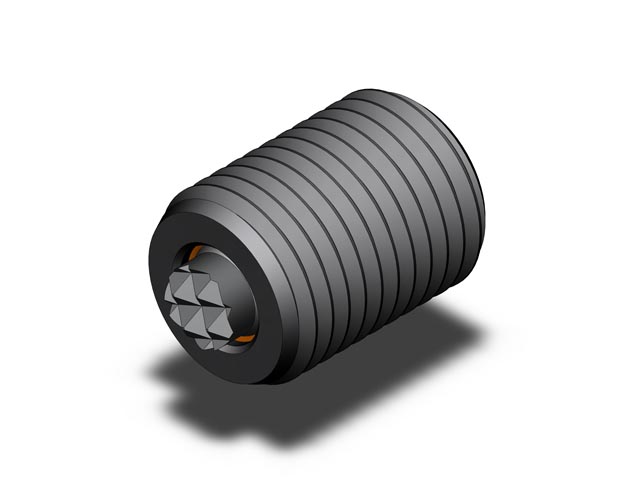

TST-0370-S
Threaded Thrust Screw - Serrated Steel Ball - 3/8-16 X 1/2 in

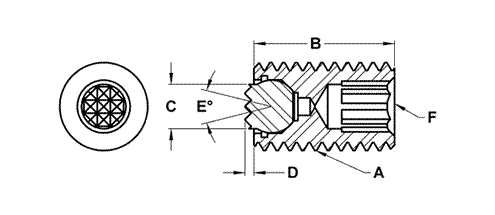

| Part # | A Thread in | B Thread Length in | C Contact Diameter in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Diameter in | Load Rating lbs | Ball Only Part No. in | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| TST-0230-S | 3/8-24 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0230X.75-S | 3/8-24 | 3/4 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0231-S | 3/8-24 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0231X1.5-S | 3/8-24 | 1-1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0231X2-S | 3/8-24 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0231X3-S | 3/8-24 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0370-S | 3/8-16 | 1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0370X.75-S | 3/8-16 | 3/4 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0375-S | 3/8-16 | 1 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0375X1.5-S | 3/8-16 | 1-1/2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0375X2-S | 3/8-16 | 2 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0375X3-S | 3/8-16 | 3 | 5/32 | 1/16 | 28 | 3/16 | 3/16 | 1,763 | BUB-187-S | SF | |
| TST-0500-S | 1/2-20 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0500X1.5-S | 1/2-20 | 1-1/2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0500X2-S | 1/2-20 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0500X3-S | 1/2-20 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0503-S | 1/2-20 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0510-S | 1/2-13 | 1 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0510X1.5-S | 1/2-13 | 1-1/2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0510X2-S | 1/2-13 | 2 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0510X3-S | 1/2-13 | 3 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0513-S | 1/2-13 | 3/4 | 1/4 | 1/16 | 28 | 1/4 | 9/32 | 4,527 | BUB-200-S | SF | |
| TST-0620-S | 5/8-18 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | 6,131 | BUB-300-S | EF | |
| TST-0620X2-S | 5/8-18 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | 6,131 | BUB-300-S | EF | |
| TST-0620X3-S | 5/8-18 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | 6,131 | BUB-300-S | EF | |
| TST-0625-S | 5/8-11 | 1 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | 6,131 | BUB-300-S | EF | |
| TST-0625X2-S | 5/8-11 | 2 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | 6,131 | BUB-300-S | EF | |
| TST-0625X3-S | 5/8-11 | 3 | 5/16 | 1/16 | 28 | 5/16 | 3/8 | 6,131 | BUB-300-S | EF | |
| TST-0750-S | 3/4-16 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | 8,150 | BUB-500-S | EF | |
| TST-0750X2-S | 3/4-16 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | 8,150 | BUB-500-S | EF | |
| TST-0750X3-S | 3/4-16 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | 8,150 | BUB-500-S | EF | |
| TST-0755-S | 3/4-10 | 1 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | 8,150 | BUB-500-S | EF | |
| TST-0755X2-S | 3/4-10 | 2 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | 8,150 | BUB-500-S | EF | |
| TST-0755X3-S | 3/4-10 | 3 | 3/8 | 1/8 | 40 | 3/8 | 1/2 | 8,150 | BUB-500-S | EF | |
| TST-1108-S | 1-8 | 1 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | 14,757 | BUB-600-S | Fine | |
| TST-1108X2-S | 1-8 | 2 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | 14,757 | BUB-600-S | Fine | |
| TST-1108X3-S | 1-8 | 3 | 1/2 | 1/8 | 40 | 3/8 | 5/8 | 14,757 | BUB-600-S | Fine | |
| TST-1114-S | 1-14 | 1 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | 17,210 | BUB-700-S | Fine | |
| TST-1114X2-S | 1-14 | 2 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | 17,210 | BUB-700-S | Fine | |
| TST-1114X3-S | 1-14 | 3 | 5/8 | 1/8 | 34 | 3/8 | 3/4 | 17,210 | BUB-700-S | Fine |
