Thrust Screws - Threaded Design - Round Stainless Steel Ball - Inch (TST-SB)
TST-0310-SB

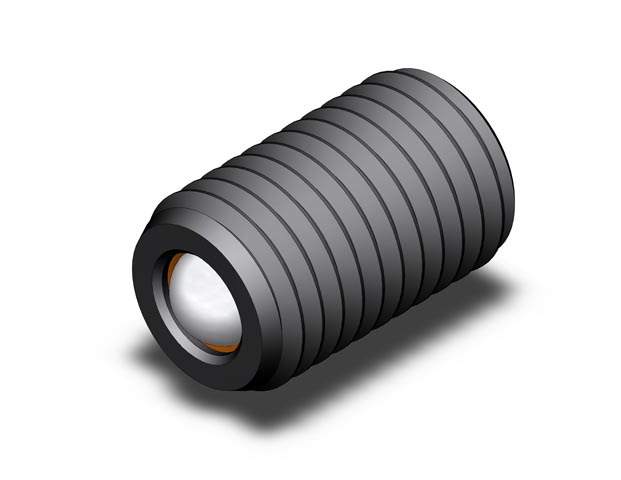

Threaded Thrust Screw - Round SS Ball - 5/16-18 X 1/2 in

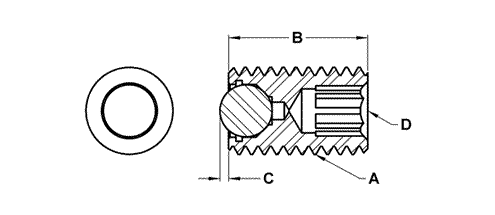

| Part # | A Thread | B Thread Length in | C Standoff in | Ball Diameter in | D Int Hex in | Ball Only Part No. in | Load Rating lbs |
|
|---|---|---|---|---|---|---|---|---|
| TST-0230-SB | 3/8-24 | 1/2 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0230X.75-SB | 3/8-24 | 3/4 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0231-SB | 3/8-24 | 1 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0231X1.5-SB | 3/8-24 | 1-1/2 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0231X2-SB | 3/8-24 | 2 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0231X3-SB | 3/8-24 | 3 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0310-SB | 5/16-18 | 1/2 | .026 | 5/32 | 5/32 | BUB-156-SB | — | |
| TST-0312-SB | 5/16-18 | 3/4 | .026 | 5/32 | 5/32 | BUB-156-SB | — | |
| TST-0312X1.5-SB | 5/16-18 | 1-1/2 | .026 | 5/32 | 5/32 | BUB-156-SB | — | |
| TST-0312X1-SB | 5/16-18 | 1 | .026 | 5/32 | 5/32 | BUB-156-SB | — | |
| TST-0320-SB | 5/16-24 | 1/2 | .026 | 5/32 | 5/32 | BUB-156-SB | — | |
| TST-0321-SB | 5/16-24 | 3/4 | .026 | 5/32 | 5/32 | BUB-156-SB | — | |
| TST-0321X1.5-SB | 5/16-24 | 1-1/2 | .026 | 5/32 | 5/32 | BUB-156-SB | — | |
| TST-0321X1-SB | 5/16-24 | 1 | .026 | 5/32 | 5/32 | BUB-156-SB | — | |
| TST-0370-SB | 3/8-16 | 1/2 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0370X.75-SB | 3/8-16 | 3/4 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0375X1.5-SB | 3/8-16 | 1-1/2 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0375X2-SB | 3/8-16 | 2 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0375X3-SB | 3/8-16 | 3 | .024 | 3/16 | 3/16 | BUB-187-SB | 1,763 | |
| TST-0500-SB | 1/2-20 | 1 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0500X1.5-SB | 1/2-20 | 1-1/2 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0500X2-SB | 1/2-20 | 2 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0500X3-SB | 1/2-20 | 3 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0503-SB | 1/2-20 | 3/4 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0510-SB | 1/2-13 | 1 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0510X1.5-SB | 1/2-13 | 1-1/2 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0510X2-SB | 1/2-13 | 2 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0510X3-SB | 1/2-13 | 3 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0513-SB | 1/2-13 | 3/4 | .063 | 1/4 | 9/32 | BUB-200-SB | 4,527 | |
| TST-0620-SB | 5/8-18 | 1 | .063 | 5/16 | 3/8 | BUB-300-SB | 6,131 | |
| TST-0620X2-SB | 5/8-18 | 2 | .063 | 5/16 | 3/8 | BUB-300-SB | 6,131 | |
| TST-0620X3-SB | 5/8-18 | 3 | .063 | 5/16 | 3/8 | BUB-300-SB | 6,131 | |
| TST-0625-SB | 5/8-11 | 1 | .063 | 5/16 | 3/8 | BUB-300-SB | 6,131 | |
| TST-0625X2-SB | 5/8-11 | 2 | .063 | 5/16 | 3/8 | BUB-300-SB | 6,131 | |
| TST-0625X3-SB | 5/8-11 | 3 | .063 | 5/16 | 3/8 | BUB-300-SB | 6,131 | |
| TST-0750-SB | 3/4-16 | 1 | .107 | 3/8 | 1/2 | BUB-500-SB | 8,150 | |
| TST-0750X2-SB | 3/4-16 | 2 | .107 | 3/8 | 1/2 | BUB-500-SB | 8,150 | |
| TST-0750X3-SB | 3/4-16 | 3 | .107 | 3/8 | 1/2 | BUB-500-SB | 8,150 | |
| TST-0755-SB | 3/4-10 | 1 | .107 | 3/8 | 1/2 | BUB-500-SB | 8,150 | |
| TST-0755X2-SB | 3/4-10 | 2 | .107 | 3/8 | 1/2 | BUB-500-SB | 8,150 | |
| TST-0755X3-SB | 3/4-10 | 3 | .107 | 3/8 | 1/2 | BUB-500-SB | 8,150 | |
| TST-1108-SB | 1-8 | 1 | .175 | 3/8 | 5/8 | BUB-600-SB | 14,757 | |
| TST-1108X2-SB | 1-8 | 2 | .175 | 3/8 | 5/8 | BUB-600-SB | 14,757 | |
| TST-1108X3-SB | 1-8 | 3 | .175 | 3/8 | 5/8 | BUB-600-SB | 14,757 | |
| TST-1114-SB | 1-14 | 1 | .208 | 3/8 | 3/4 | BUB-700-SB | 17,210 | |
| TST-1114X2-SB | 1-14 | 2 | .208 | 3/8 | 3/4 | BUB-700-SB | 17,210 | |
| TST-1114X3-SB | 1-14 | 3 | .208 | 3/8 | 3/4 | BUB-700-SB | 17,210 |
