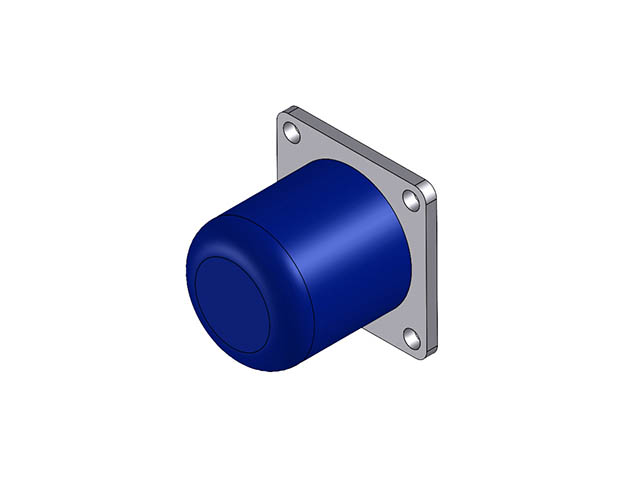

Bumpers - Crane Stop - Round - Steel Plate Mount (RB)
RB-2020-P-60UR
Plate Mount Bumper - 60 Dur Urethane - 2 in Dia X 2 in

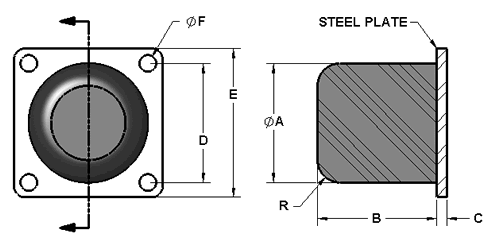

| Part # | A Dia in | B Length in | C in | D in | Durometer Shore A | E in | F in | R in | Material |
|
|---|---|---|---|---|---|---|---|---|---|---|
| RB-2020-P-60UR | 2 | 2 | 3/16 | 2 | 60 | 2-1/2 | 9/32 | 3/8 | Urethane | |
| RB-2020-P-80UR | 2 | 2 | 3/16 | 2 | 80 | 2-1/2 | 9/32 | 3/8 | Urethane | |
| RB-2525-P-60UR | 2-1/2 | 2-1/2 | 3/16 | 2-1/2 | 60 | 3-1/4 | 9/32 | 1/2 | Urethane | |
| RB-2525-P-80UR | 2-1/2 | 2-1/2 | 3/16 | 2-1/2 | 80 | 3-1/4 | 9/32 | 1/2 | Urethane | |
| RB-3030-P-60UR | 3 | 3 | 1/4 | 3 | 60 | 4 | 13/32 | 5/8 | Urethane | |
| RB-3030-P-80UR | 3 | 3 | 1/4 | 3 | 80 | 4 | 13/32 | 5/8 | Urethane | |
| RB-4040-P-60UR | 4 | 4 | 1/4 | 4 | 60 | 5 | 13/32 | 3/4 | Urethane | |
| RB-4040-P-80UR | 4 | 4 | 1/4 | 4 | 80 | 5 | 13/32 | 3/4 | Urethane |
