Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Metric (MTBU-DC)
MTBU-10025-DC

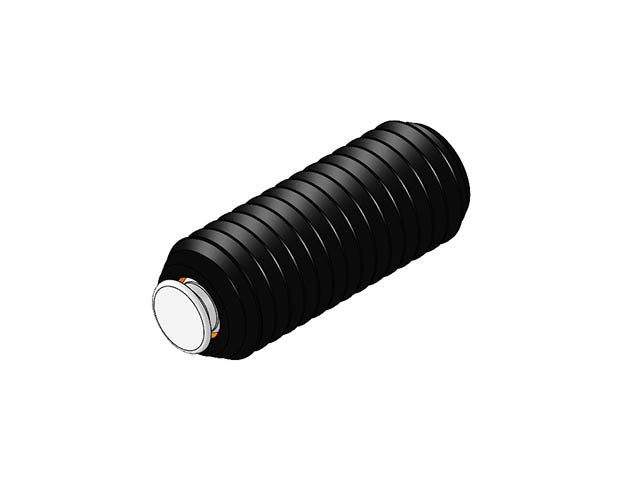

Threaded Design Swivot - M10 X 1.5 X 25 mm - Delrin Cone

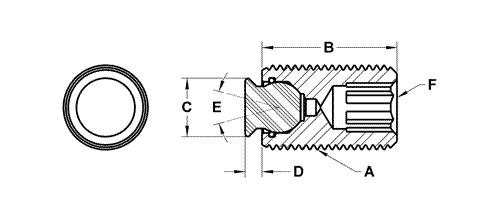

| Part # | A Thread | B Thread Length mm | C Contact Dia mm | D Standoff mm | E Swivel Degrees | F Internal Hex mm | Ball Dia mm | Ball Only Part No. |
|
|---|---|---|---|---|---|---|---|---|---|
| MTBU-10025-DC | M10x1.5 | 25 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-DC | |
| MTBU-10035-DC | M10x1.5 | 35 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-DC | |
| MTBU-10050-DC | M10x1.5 | 50 | 6 | 1.5 | 28 | 5 | 5 | MBUB-050-DC | |
| MTBU-12025-DC | M12x1.75 | 25 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-DC | |
| MTBU-12035-DC | M12x1.75 | 35 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-DC | |
| MTBU-12050-DC | M12x1.75 | 50 | 8 | 2.0 | 28 | 6 | 7 | MBUB-070-DC | |
| MTBU-16025-DC | M16x2.0 | 25 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-DC | |
| MTBU-16035-DC | M16x2.0 | 35 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-DC | |
| MTBU-16050-DC | M16x2.0 | 50 | 11 | 3.0 | 28 | 8 | 10 | MBUB-100-DC | |
| MTBU-20030-DC | M20x2.5 | 30 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-DC | |
| MTBU-20050-DC | M20x2.5 | 50 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-DC | |
| MTBU-20070-DC | M20x2.5 | 70 | 14 | 3.0 | 28 | 10 | 13 | MBUB-130-DC | |
| MTBU-24040-DC | M24x3.0 | 40 | 19 | 4.0 | 24 | 10 | 15 | MBUB-150-DC | |
| MTBU-24080-DC | M24x3.0 | 80 | 19 | 4.0 | 24 | 10 | 15 | MBUB-150-DC |
