Thrust Screws - Threaded Design - Diamond Surface Cone - Inch (TST-FC-DS)
TST-0370-FC-DS

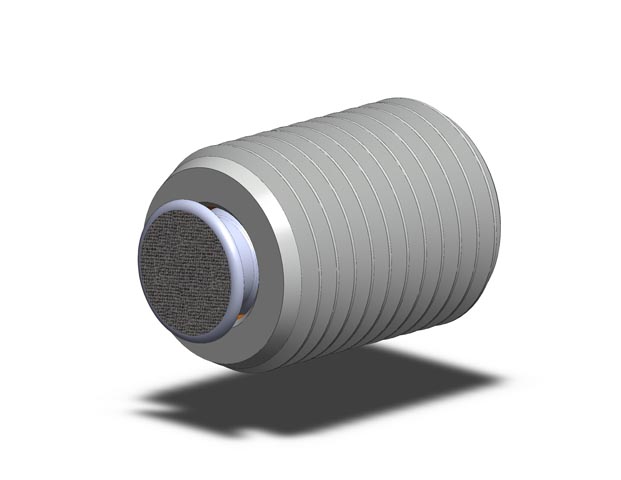

Threaded Thrust Screw - Diamond Surface - 3/8-16 X 1/2

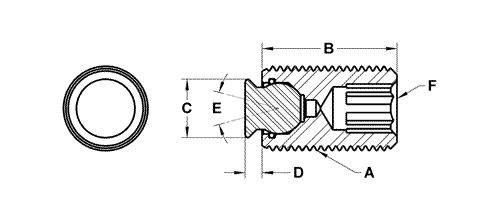

| Part # | A Thread in | B Thread Length in | C Contact Diameter in | D Standoff in | E Swivel Degrees | F Int Hex in | Ball Diameter in | Load Rating lbs | Ball Only Part No. in |
|
|---|---|---|---|---|---|---|---|---|---|---|
| TST-0230-FC-DS | 3/8-24 | 1/2 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0231-FC-DS | 3/8-24 | 1 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0231X2-FC-DS | 3/8-24 | 2 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0231X3-FC-DS | 3/8-24 | 3 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0370-FC-DS | 3/8-16 | 1/2 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0370X.75-FC-DS | 3/8-16 | 3/4 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0375-FC-DS | 3/8-16 | 1 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0375X1.5-FC-DS | 3/8-16 | 1-1/2 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0375X2-FC-DS | 3/8-16 | 2 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0375X3-FC-DS | 3/8-16 | 3 | .236 | .063 | 28 | 3/16 | 3/16 | 1,763 | 1,763 | |
| TST-0500-FC-DS | 1/2-20 | 1 | .315 | .094 | 28 | 1/4 | 9/32 | 4,527 | 4,527 | |
| TST-0500X2-FC-DS | 1/2-20 | 2 | .315 | .094 | 28 | 1/4 | 9/32 | 4,527 | 4,527 | |
| TST-0500X3-FC-DS | 1/2-20 | 3 | .315 | .094 | 28 | 1/4 | 9/32 | 4,527 | 4,527 | |
| TST-0510-FC-DS | 1/2-13 | 1 | .315 | .094 | 28 | 1/4 | 9/32 | 4,527 | 4,527 | |
| TST-0510X2-FC-DS | 1/2-13 | 2 | .315 | .094 | 28 | 1/4 | 9/32 | 4,527 | 4,527 | |
| TST-0510X3-FC-DS | 1/2-13 | 3 | .315 | .094 | 28 | 1/4 | 9/32 | 4,527 | 4,527 | |
| TST-0513-FC-DS | 1/2-13 | 3/4 | .315 | .094 | 28 | 1/4 | 9/32 | 4,527 | 4,527 | |
| TST-0620-FC-DS | 5/8-18 | 1 | .433 | .125 | 28 | 5/16 | 3/8 | 6,131 | 6,131 | |
| TST-0620X2-FC-DS | 5/8-18 | 2 | .433 | .125 | 28 | 5/16 | 3/8 | 6,131 | 6,131 | |
| TST-0625-FC-DS | 5/8-11 | 1 | .433 | .125 | 28 | 5/16 | 3/8 | 6,131 | 6,131 | |
| TST-0625X3-FC-DS | 5/8-11 | 3 | .433 | .125 | 28 | 5/16 | 3/8 | 6,131 | 6,131 | |
| TST-0750-FC-DS | 3/4-16 | 1 | .551 | .125 | 28 | 3/8 | 1/2 | 8,150 | 8,150 | |
| TST-0750X2-FC-DS | 3/4-16 | 2 | .551 | .125 | 28 | 3/8 | 1/2 | 8,150 | 8,150 | |
| TST-0750X3-FC-DS | 3/4-16 | 3 | .551 | .125 | 28 | 3/8 | 1/2 | 8,150 | 8,150 | |
| TST-0755-FC-DS | 3/4-10 | 1 | .551 | .125 | 28 | 3/8 | 1/2 | 8,150 | 8,150 | |
| TST-0755X2-FC-DS | 3/4-10 | 2 | .551 | .125 | 28 | 3/8 | 1/2 | 8,150 | 8,150 | |
| TST-0755X3-FC-DS | 3/4-10 | 3 | .551 | .125 | 28 | 3/8 | 1/2 | 8,150 | 8,150 | |
| TST-1108-FC-DS | 1-8 | 1 | .748 | .156 | 32 | 3/8 | 5/8 | 14,757 | 14,757 | |
| TST-1108X2-FC-DS | 1-8 | 2 | .748 | .156 | 32 | 3/8 | 5/8 | 14,757 | 14,757 | |
| TST-1108X3-FC-DS | 1-8 | 3 | .748 | .156 | 32 | 3/8 | 5/8 | 14,757 | 14,757 | |
| TST-1114-FC-DS | 1-14 | 1 | .827 | .156 | 32 | 3/8 | 3/4 | 17,210 | 17,210 | |
| TST-1114X2-FC-DS | 1-14 | 2 | .827 | .156 | 32 | 3/8 | 3/4 | 17,210 | 17,210 | |
| TST-1114X3-FC-DS | 1-14 | 3 | .827 | .156 | 32 | 3/8 | 3/4 | 17,210 | 17,210 |
