Grippers - Round - Stainless Steel - SofTop® Urethane Surface - Tapped - Metric (MCSRP-UR)
MCSRP-082-35UR

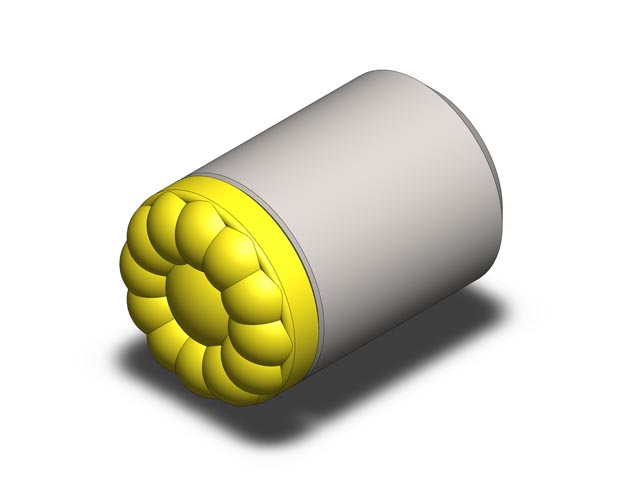

Sof-Top Gripper - Tapped - 8 mm Dia X 12 mm - 35 Dur

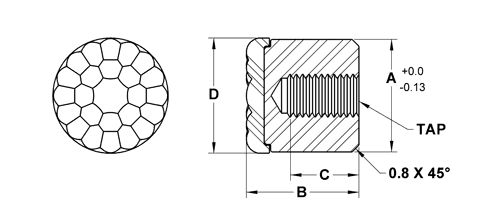

| Part # | A Dia mm | B Height mm | Tap | C Thread Length mm | D Contact Dia mm | Durometer Shore A | Urethane Thickness mm | Load Compression lbs |
|
|---|---|---|---|---|---|---|---|---|---|
| MCSRP-082-35UR | 8 | 12 | M4x0.7 | 6 | 8 | 35 | 2 | 10 | |
| MCSRP-082-60UR | 8 | 12 | M4x0.7 | 6 | 8 | 60 | 2 | 30 | |
| MCSRP-082-80UR | 8 | 12 | M4x0.7 | 6 | 8 | 80 | 2 | 45 | |
| MCSRP-102-35UR | 10 | 12 | M5x0.8 | 6 | 10 | 35 | 2 | 12 | |
| MCSRP-102-60UR | 10 | 12 | M5x0.8 | 6 | 10 | 60 | 2 | 35 | |
| MCSRP-102-80UR | 10 | 12 | M5x0.8 | 6 | 10 | 80 | 2 | 90 | |
| MCSRP-122-35UR | 12 | 12 | M5x0.8 | 6 | 13 | 35 | 2 | 40 | |
| MCSRP-122-60UR | 12 | 12 | M5x0.8 | 6 | 13 | 60 | 2 | 75 | |
| MCSRP-122-80UR | 12 | 12 | M5x0.8 | 6 | 13 | 80 | 2 | 190 | |
| MCSRP-162-35UR | 16 | 12 | M6x1.0 | 6 | 16 | 35 | 2 | 80 | |
| MCSRP-162-60UR | 16 | 12 | M6x1.0 | 6 | 16 | 60 | 2 | 160 | |
| MCSRP-162-80UR | 16 | 12 | M6x1.0 | 6 | 16 | 80 | 2 | 260 | |
| MCSRP-202-35UR | 20 | 12 | M6x1.0 | 6 | 21 | 35 | 3 | 85 | |
| MCSRP-202-60UR | 20 | 12 | M6x1.0 | 6 | 21 | 60 | 3 | 230 | |
| MCSRP-202-80UR | 20 | 12 | M6x1.0 | 6 | 21 | 80 | 3 | 365 | |
| MCSRP-252-35UR | 25 | 12 | M6x1.0 | 6 | 27 | 35 | 3 | 145 | |
| MCSRP-252-60UR | 25 | 12 | M6x1.0 | 6 | 27 | 60 | 3 | 300 | |
| MCSRP-252-80UR | 25 | 12 | M6x1.0 | 6 | 27 | 80 | 3 | 600 |
