Grippers - Round - Tool Steel - Diamond Serration - Tapped - Metric (MHS)
MHS-100

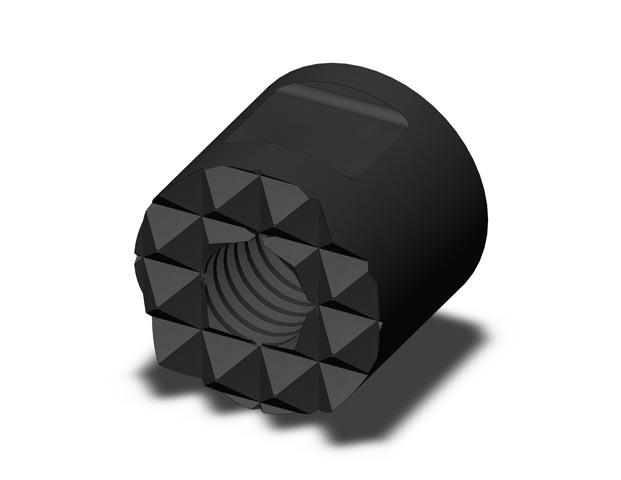

Tool Steel Gripper - Round - 10 mm Dia X 10 mm - Extra Fine

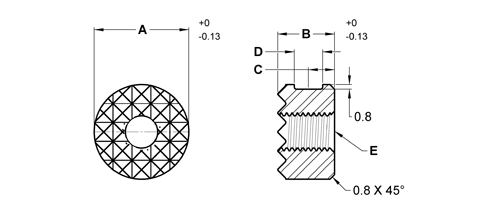

| Part # | A OD mm | B Height mm | C Flat Position mm | D Flats mm | E Tap | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|
| MHS-100 | 10 | 10 | 4.5 | 4.75 | M5x0.8 | EF | |
| MHS-102 | 10 | 12 | 6 | 4.75 | M5x0.8 | EF | |
| MHS-120 | 12 | 10 | 4.5 | 4.75 | M5x0.8 | Fine | |
| MHS-122 | 12 | 12 | 6 | 4.75 | M5x0.8 | Fine | |
| MHS-160 | 16 | 10 | 4.5 | 4.75 | M6x1.0 | Fine | |
| MHS-162 | 16 | 12 | 6 | 4.75 | M6x1.0 | Fine | |
| MHS-200 | 20 | 10 | 4.5 | 4.75 | M6x1.0 | Fine | |
| MHS-202 | 20 | 12 | 6 | 4.75 | M6x1.0 | Fine | |
| MHS-250 | 25 | 10 | 4.5 | 4.75 | M6x1.0 | Fine | |
| MHS-252 | 25 | 12 | 6 | 4.75 | M6x1.0 | Fine |
