Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH)
MCTH-06102

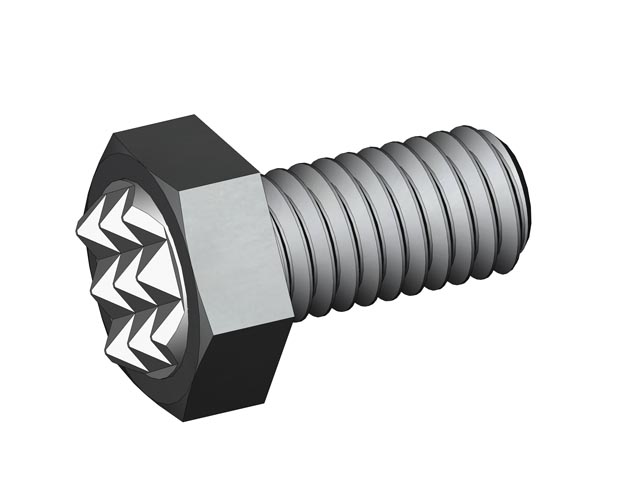

MCTH Adjustable Gripper - M6 X 1.00 X 12 mm - Extra Fine

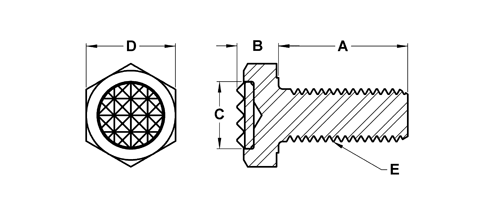

| Part # | A Shank mm | B Head mm | C Contact Surface Dia. in | D Hex Flats mm | E Thread mm | Tooth Pattern |
|
|---|---|---|---|---|---|---|---|
| MCTH-06100 | 25 | 5 | 5/16 | 10 | M6x1.00 | EF | |
| MCTH-06102 | 12 | 5 | 5/16 | 10 | M6x1.00 | EF | |
| MCTH-08122 | 12 | 6.4 | 3/8 | 13 | M8x1.25 | Fine | |
| MCTH-08125 | 25 | 6.4 | 3/8 | 13 | M8x1.25 | Fine | |
| MCTH-08125X16 | 16 | 6.4 | 3/8 | 13 | M8x1.25 | Fine | |
| MCTH-08125X35 | 35 | 6.4 | 3/8 | 13 | M8x1.25 | Fine | |
| MCTH-10125 | 25 | 7.5 | 1/2 | 17 | M10x1.25 | Fine | |
| MCTH-10125X40 | 40 | 7.5 | 1/2 | 17 | M10x1.25 | Fine | |
| MCTH-10150 | 25 | 7.5 | 1/2 | 17 | M10x1.50 | Fine | |
| MCTH-10150X40 | 40 | 7.5 | 1/2 | 17 | M10x1.50 | Fine | |
| MCTH-10152 | 12 | 7.5 | 1/2 | 17 | M10x1.50 | Fine | |
| MCTH-12175 | 25 | 8.7 | 5/8 | 19 | M12x1.75 | Fine | |
| MCTH-12175X40 | 40 | 8.7 | 5/8 | 19 | M12x1.75 | Fine | |
| MCTH-16200 | 35 | 11 | 3/4 | 24 | M16x2.00 | Fine | |
| MCTH-16200X50 | 50 | 11 | 3/4 | 24 | M16x2.00 | Fine | |
| MCTH-20250 | 40 | 13.7 | 1 | 30 | M20x2.50 | EF | |
| MCTH-20250X60 | 60 | 13.7 | 1 | 30 | M20x2.50 | EF |
