Indexing Plungers - Pull Pins - Round Handle - Steel Plunger - Aluminum Housing (CP-RAL)
CP-K25RAL

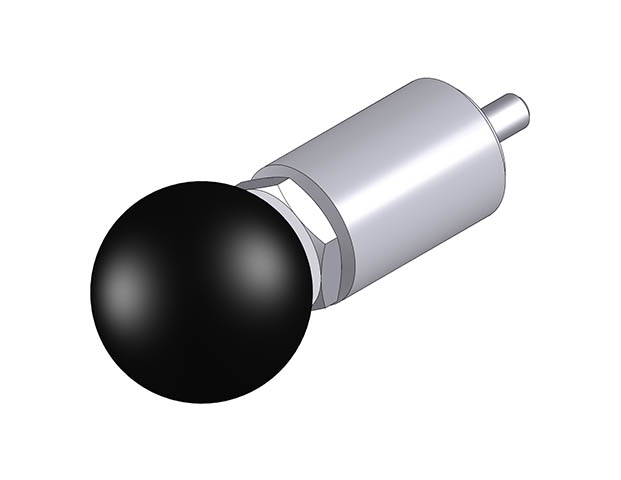

Pull Pin - Steel Plunger w/ Round Handle - Aluminum Barrel - 1/4 in

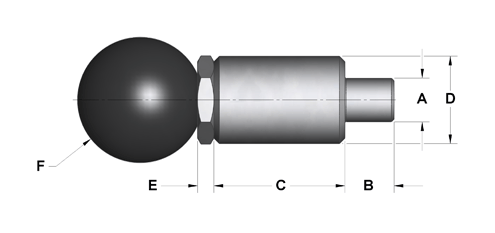

| Part # | A in | B in | C in | D in | E in | F in |
|
|---|---|---|---|---|---|---|---|
| CP-K100RAL | 3/8 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K200RAL | 1/2 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K25RAL | 1/4 | 9/16 | 1-1/2 | 1 | 3/16 | 1-3/8 | |
| CP-K320RAL | 1/2 | 9/16 | 2-1/4 | 1 | 3/16 | 1-3/8 | |
| CP-K420RAL | 5/8 | 9/16 | 2-1/4 | 1 | 3/16 | 1-3/8 |
